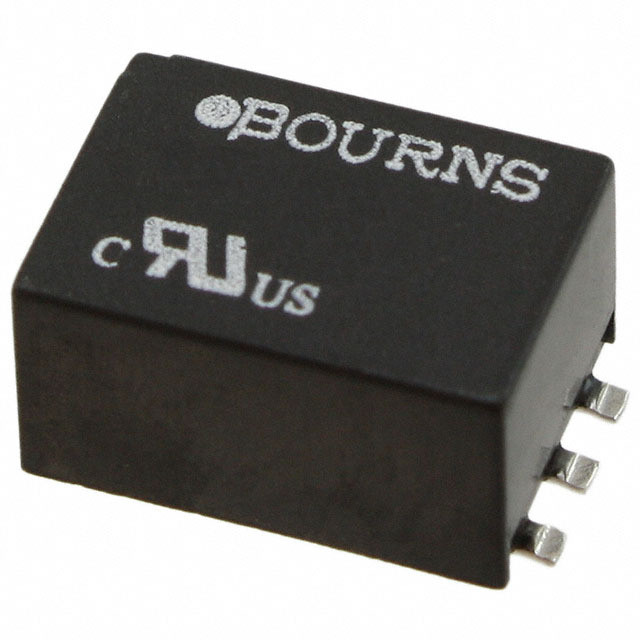

BOURNS SM-LP-5001 音频变压器, 600 ohm, 600 ohm, 表面安装
The is a surface mount line matching Audio Transformer for use with recommended circuit. The SM-LP-5001 is symmetrical, meaning there is no real primary nor secondary winding.
电感 6 mH
隔离电压 1.5 kV
工作温度Max 85 ℃
工作温度Min -20 ℃
电阻DC Max 115 Ω
安装方式 Surface Mount
引脚数 6
封装 SMT-6
长度 12.5 mm
宽度 7.36 mm
高度 7.5 mm
封装 SMT-6
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Audio, Communications & Networking, Computers & Computer Peripherals, Sensing & Instrumentation, 通信与网络, 传感与仪器, 音频, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504312000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM-LP-5001 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SM-LP-5001E 伯恩斯 | 类似代替 | SM-LP-5001和SM-LP-5001E的区别 |
