STMICROELECTRONICS STNS01PUR 芯片, 直流-直流转换器
电池充电和监视控制器，STMicroelectronics
得捷:
IC BATT CHG LI-ION 1CELL 12DFN
立创商城:
STNS01PUR
欧时:
STMicroelectronics STNS01PUR 锂离子 电池充电控制器 IC, 200mA最大输出, 4.55 → 5.4 V电源
e络盟:
芯片, 直流-直流转换器
艾睿:
This battery charger STNS01PUR charge controller from STMicroelectronics performs various functions such as battery charging, detecting when external power is present, and determining safe operating temperatures. Its output produces a current of 200 mA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a minimum operating supply voltage of 4.55 V and a maximum of 5.4 V. This battery gauge has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device runs on Li-Ion.
安富利:
Battery Charger Li-Ion 200mA 12-Pin DFN T/R
富昌:
STNS01 系列 5.4 V 单电池 线性 表面贴装 电池充电 控制器 - DFN-12
Chip1Stop:
Battery Charger Li-Ion 200mA 12-Pin DFN EP T/R
Verical:
Linear Battery Charger Li-Ion 200mA 12-Pin DFN EP T/R
Newark:
# STMICROELECTRONICS STNS01PUR BATT CHARGER W/ LDO, LI-ION, DFN-12
儒卓力:
**LI-ION BATT.CHARGER 200mA SMD **
力源芯城:
锂离子电池线性充电器,带LDO
输入电压DC 5.40 V
输出电流 200 mA
供电电流 1.4 mA
针脚数 12
输出电压Max 3.193 V
输出电压Min 3.007 V
输出电流Max 200 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.55V ~ 5.4V
输入电压 5.4 V
安装方式 Surface Mount
引脚数 12

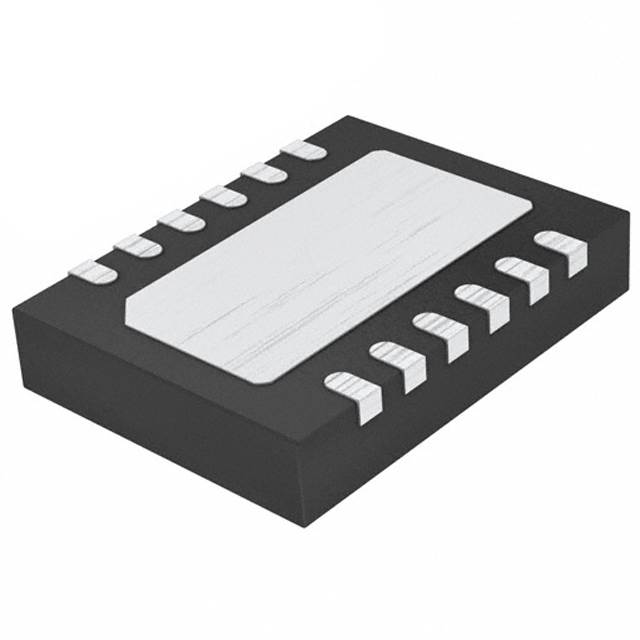

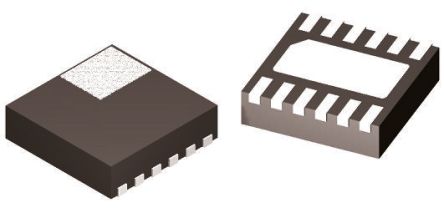

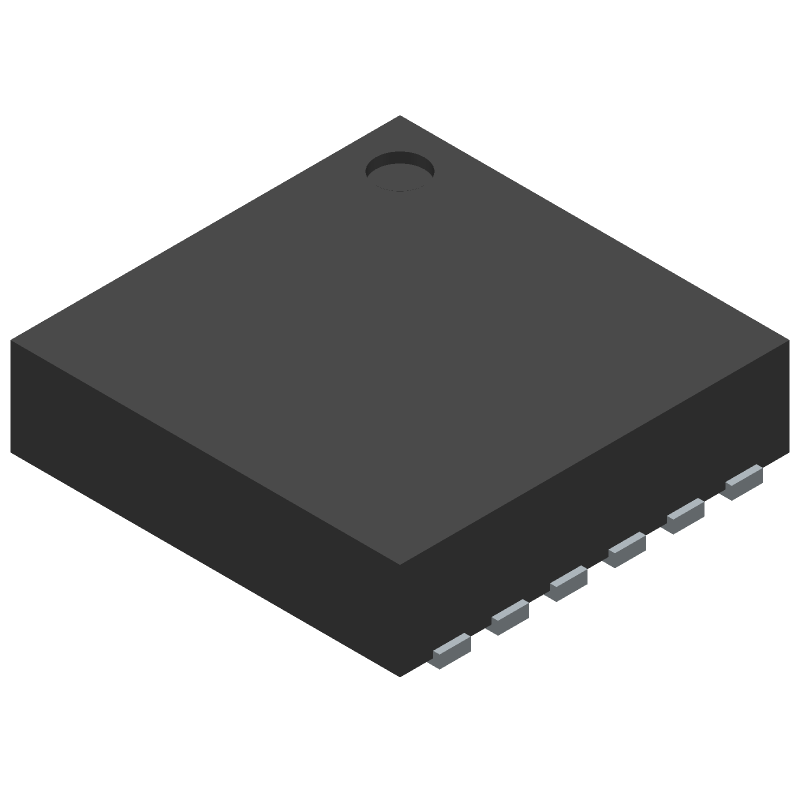

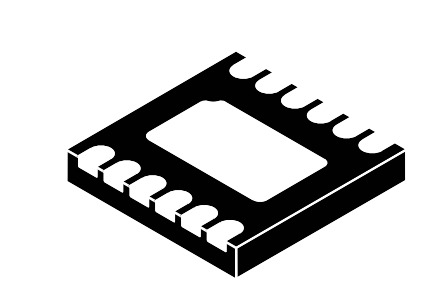

封装 DFN-12
长度 3.15 mm
宽度 3.15 mm
高度 0.75 mm
封装 DFN-12
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 便携式器材, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
