STMICROELECTRONICS STPS160U 肖特基整流器, 单, 60 V, 1 A, DO-214AA, 2 引脚, 570 mV
肖特基势垒,最大 1A,STMicroelectronics
高功率、高效率和高密度。
得捷:
DIODE SCHOTTKY 60V 1A SMB
立创商城:
60V 1A 670mV@1A
欧时:
### 肖特基势垒二极管,最大 1A,STMicroelectronics高功率、高效率和高密度。### 二极管和整流器,STMicroelectronics
贸泽:
Schottky Diodes & Rectifiers 1.0 Amp 60 Volt
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode STPS160U rectifier from STMicroelectronics. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its peak non-repetitive surge current is 75 A, while its maximum continuous forward current is 1 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
安富利:
Diode Schottky 60V 1A 2-Pin SMB T/R
Chip1Stop:
Diode Schottky 60V 1A 2-Pin SMB T/R
Verical:
Rectifier Diode Schottky 60V 1A 2-Pin SMB T/R
Newark:
# STMICROELECTRONICS STPS160U Schottky Rectifier, 60 V, 1 A, Single, DO-214AA, 2 Pins, 570 mV
儒卓力:
**SCHOTTKY-DIODE 1A 60V SMB **
Win Source:
DIODE SCHOTTKY 60V 1A SMB
额定电压DC 60.0 V
额定电流 1.00 A
输出电流 ≤1.00 A
针脚数 2
正向电压 670mV @1A
极性 Standard
热阻 23℃/W RθJL
正向电流 1 A
最大正向浪涌电流(Ifsm) 75 A
正向电压Max 570 mV
正向电流Max 1 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 150℃ Max
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 2

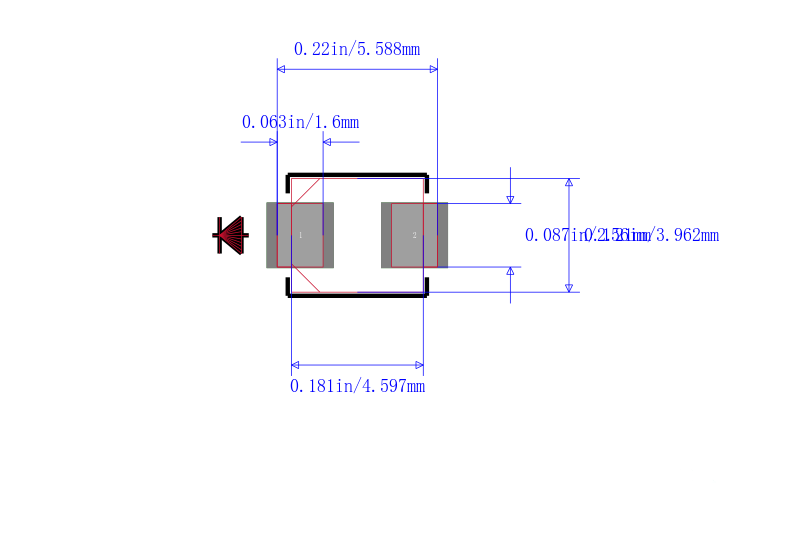

封装 DO-214AA
长度 4.6 mm
宽度 3.95 mm
高度 2.45 mm
封装 DO-214AA
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 工业, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STPS160U ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STPS140U 意法半导体 | 类似代替 | STPS160U和STPS140U的区别 |
STPS160A 意法半导体 | 类似代替 | STPS160U和STPS160A的区别 |
STPS1L40U 意法半导体 | 类似代替 | STPS160U和STPS1L40U的区别 |
