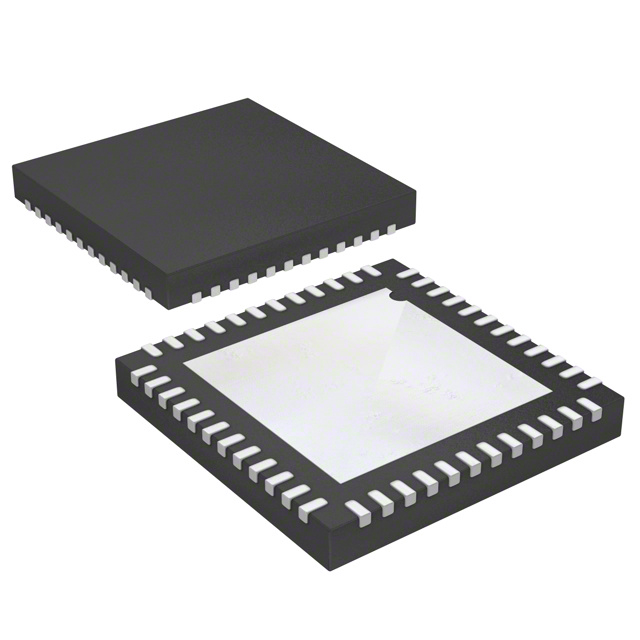

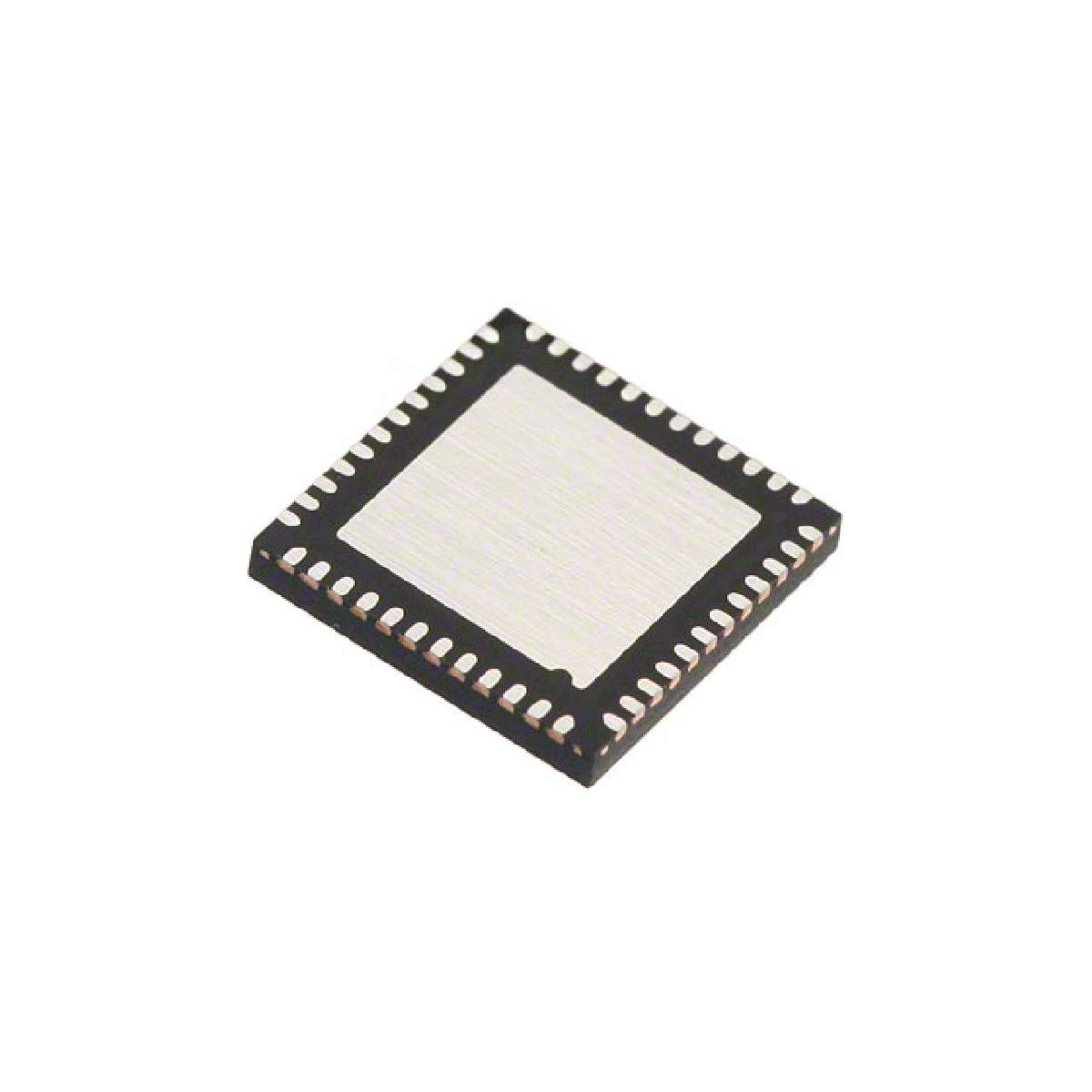

STMICROELECTRONICS STM32W108CBU64TR 微控制器, 32位, ARM 皮质-M3, 24 MHz, 128 KB, 8 KB, 48 引脚, QFN
The is a fully integrated System-on-chip Microcontroller that integrates a 2.4GHz, IEEE 802.15.4-compliant transceiver, 32-bit ARM Cortex-M3 microprocessor, flash memory, RAM and peripherals of use to designers of 802.15.4-based systems. The transceiver utilizes an efficient architecture that exceeds the dynamic range requirements imposed by the IEEE 802.15.4-2003 standard by over 15dB. The integrated receive channel filtering allows for robust co-existence with other communication standards in the 2.4GHz spectrum, such as IEEE 802.11 and Bluetooth. The integrated regulator, VCO, loop filter and power amplifier keep the external component count low. An optional high performance radio mode boost mode is software-selectable to boost dynamic range. The device has 128kB of embedded flash memory and 8kB of integrated RAM for data and program storage. The STM32W108 HAL software employs an effective wear-leveling algorithm that optimizes the lifetime of the embedded flash.
电源电压DC 1.18V min
针脚数 48
时钟频率 24.0 MHz
RAM大小 8 KB
位数 32
输入/输出数 24 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.18V ~ 3.6V
电源电压Max 1.32 V
电源电压Min 2.1 V
安装方式 Surface Mount
引脚数 48
封装 QFN-48
封装 QFN-48
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Cut Tape CT
制造应用 Building Automation, Consumer Electronics, 消费电子产品, 建筑自动化, Wireless, Alternative Energy, 自动化与过程控制, Security, 无线, Automation & Process Control, 传感与仪器, 替代能源, 安全, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 5A002.a.1.a
