STM32F103R8T7

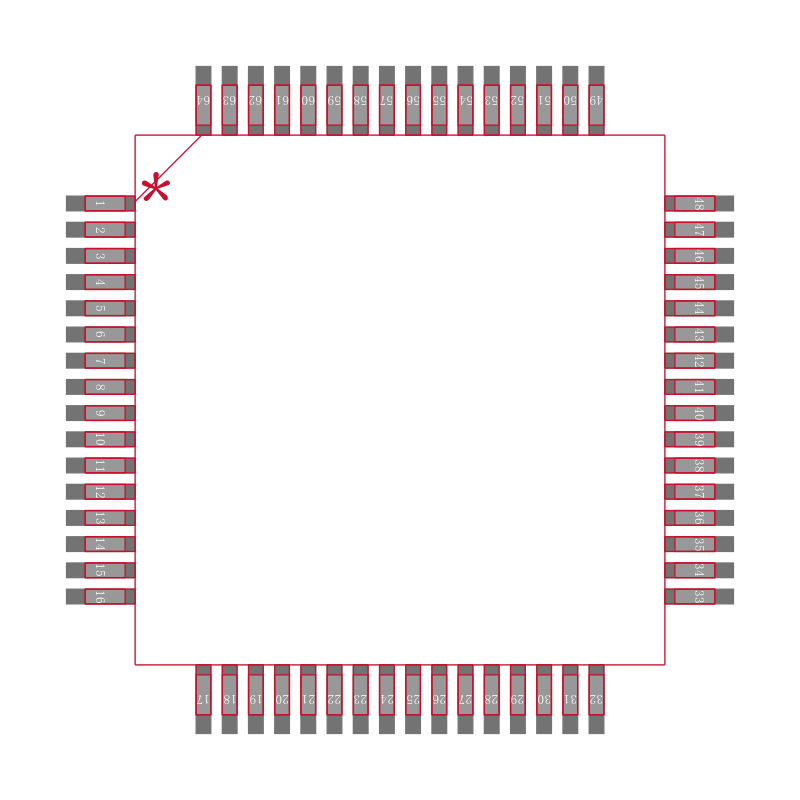

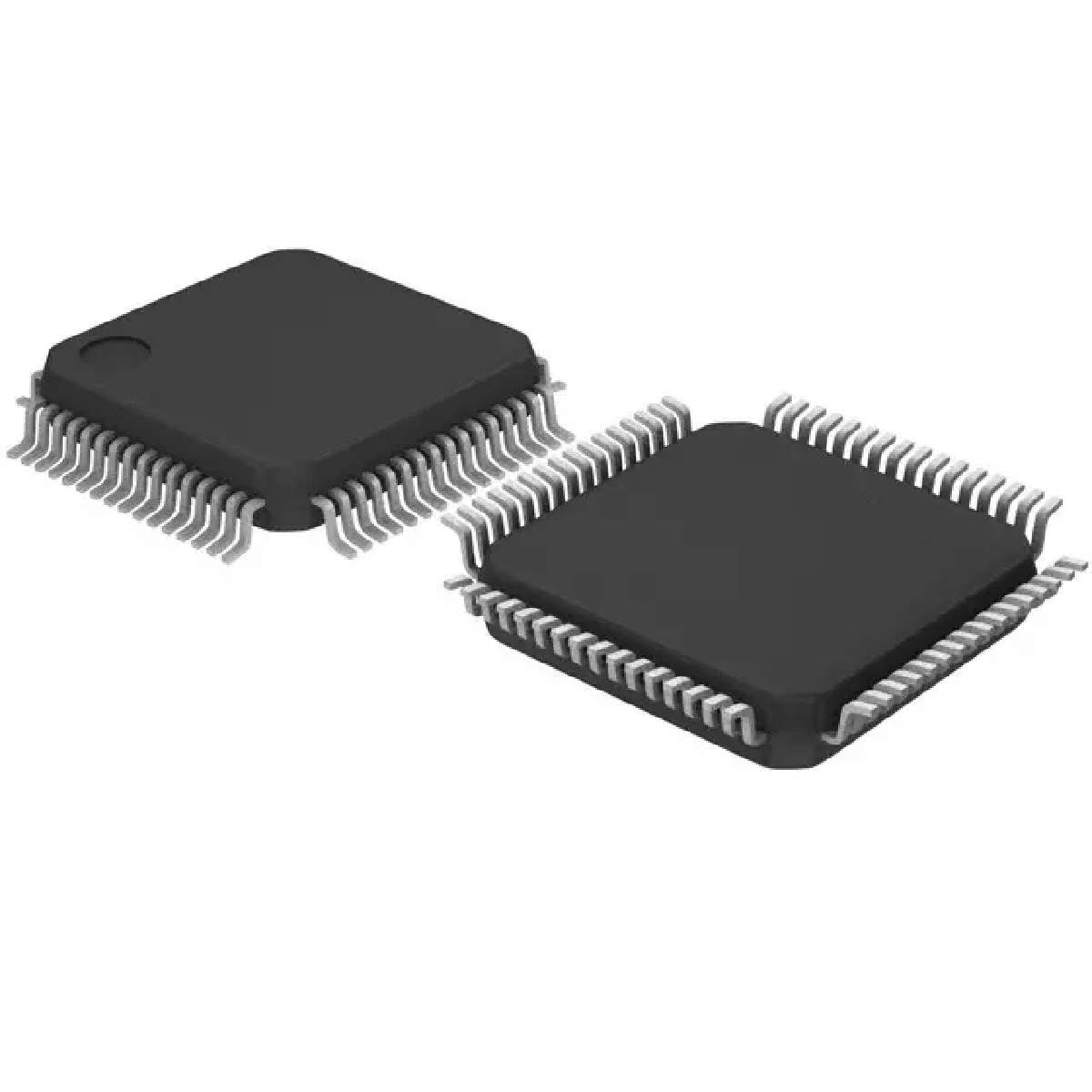

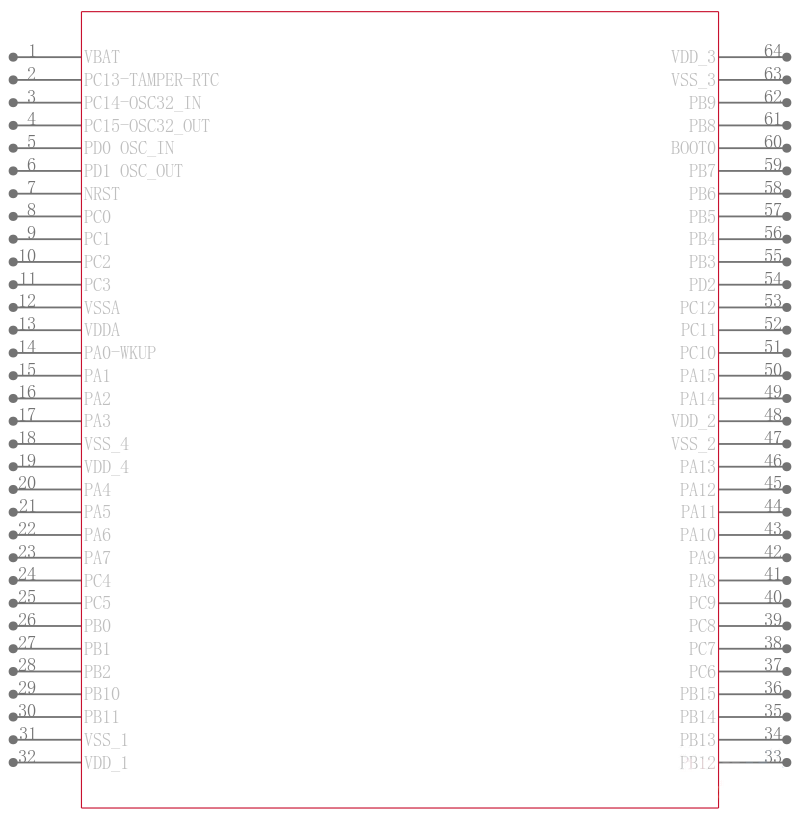

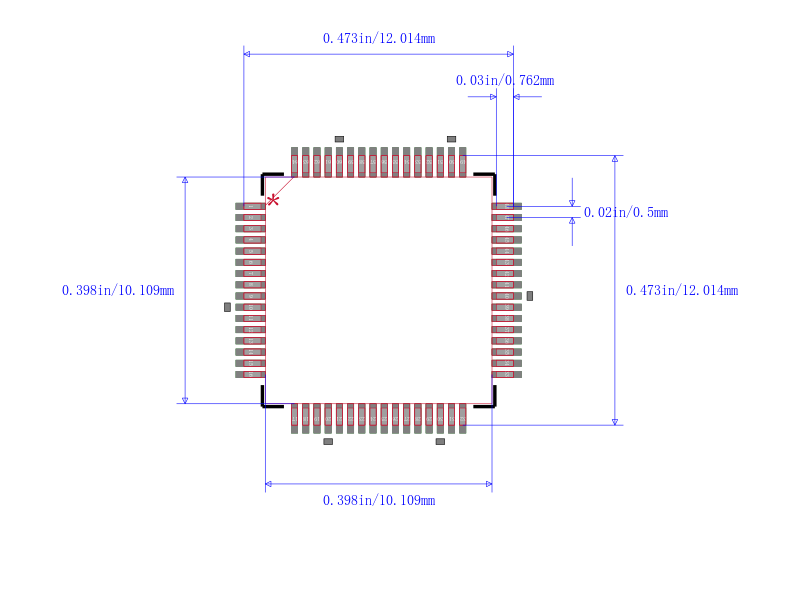

STMICROELECTRONICS  STM32F103R8T7  微控制器, 32位, 电机控制, ARM 皮质-M3, 72 MHz, 64 KB, 20 KB, 64 引脚, LQFP

The is a medium density performance line STM32 F1 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M3 RISC core operating at a 72MHz frequency, high speed embedded memories Flash memory up to 64kB and SRAM up to 20KB and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This device offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard communication interfaces - up to two I²Cs, two SPIs, three USARTs, an USB and a CAN.

.

72MHz Maximum frequency, 1.25 DMIPS/MHz Dhrystone 2.1 performance

.

Single cycle multiplication and hardware division

.

Clock, reset and supply management

.

POR, PDR and programmable voltage detector PVD

.

4 to 16MHz Crystal oscillator

.

Internal 8MHz factory trimmed RC

.

Internal 40kHz RC

.

PLL for CPU clock

.

32kHz Oscillator for RTC with calibration

.

Sleep, stop and standby modes

.

VBAT supply for RTC and backup registers

.

Serial wire debug SWD and JTAG interfaces

.

7-channel DMA Controller

.

2 x Watchdog timers Independent and window

.

SysTick Timer

.

CAN interface 2.0B Active

.

USB 2.0 full speed interface

.

96-bit Unique ID
