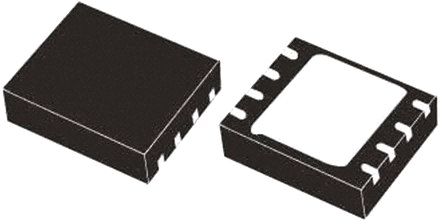

STMICROELECTRONICS ST1S32PUR 直流-直流开关降压, 逐步递降稳压器, 可调, 2.8V-5.5V输入, 4A输出, 1.9MHz, VFDFPN-8
DC-DC Switching Converters, Step-Down Regulators, STMicroelectronics
ST 的单片开关调节器提供高输入电压能力、高达 4A 的输出电流,以及高切换频率。
得捷:
IC REG BUCK ADJ 4A 8VFDFPN
欧时:
### DC-DC Switching Converters, Step-Down Regulators, STMicroelectronicsST 的单片开关调节器提供高输入电压能力、高达 4A 的输出电流,以及高切换频率。### 开关电压调节器,STMicroelectronics
立创商城:
降压型 Vin=2.8V~5.5V Vout=800mV~5.5V 4A
艾睿:
Adjust the voltage level of your devices with this step down ST1S32PUR DC to DC converter from STMicroelectronics. This converter&s;s single output can produce a current up to 4 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.8 V that does not exceed 5.5 V. With an adjustable output that has a voltage of 0.8 to 5.5 V, this is power management at its best. By operating at a load regulation of 0.6% and line regulation of 0.3% you can provide a constant voltage at your output. This part offers a switching frequency of 1900 kHz in order to work properly. This converter has a minimum operating temperature of -40 °C and a maximum of 150 °C.
安富利:
Conv DC-DC Single Step Down 2.8V to 5.5V 8-Pin VFDFPN EP
富昌:
ST1S32 Series 5.5 V 4 A Adj. 1.5 MHz DC Step-Down Switching Regulator-VFDFPN-8
Chip1Stop:
Conv DC-DC 2.8V to 5.5V Step Down Single-Out 0.8V to 5.5V 4A 8-Pin VFDFPN EP T/R
Verical:
Conv DC-DC 2.8V to 5.5V Synchronous Step Down Single-Out 0.8V to 5.5V 4A 8-Pin VFDFPN EP T/R
DeviceMart:
IC REG BUCK SYNC ADJ 4A 8VFDFPN
额定功率 2.25 W
输出接口数 1
输出电压 0.8V ~ 5.5V
输出电流 4 A
针脚数 8
静态电流 1200 µA
开关频率 1.5 MHz
输入电压Max 5.5 V
输入电压Min 2.8 V
输出电压Max 5.5 V
输出电压Min 800 mV
输出电流Max 4 A
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 2.8 V
输入电压 2.8V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 VFDFPN-8
长度 4 mm
宽度 4 mm
封装 VFDFPN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
