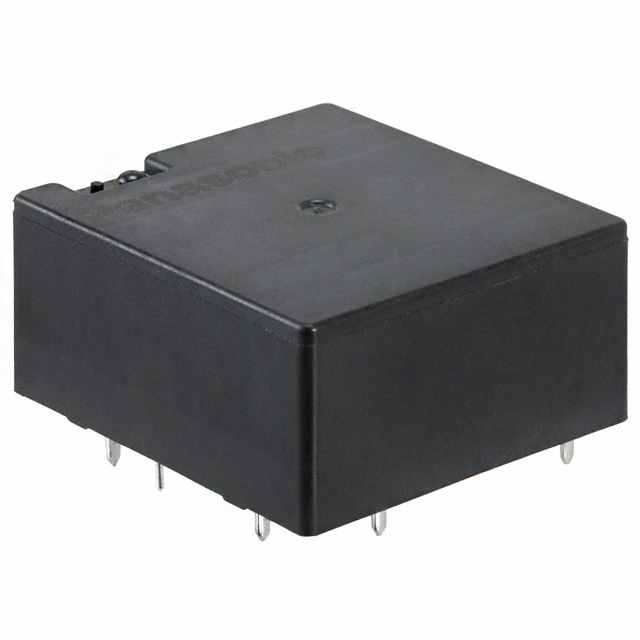

PANASONIC ELECTRIC WORKS SFY3-DC21V 安全继电器, 4PST, 21VDC, 6A, 通孔安装
Electromechanical Relay 21VDC 666Ohm 6A 3PST-NO/SPST-NC31x28.6x14.5mm THT Compact Relay
立创商城:
21VDC 6A
得捷:
RELAY SAFETY 4PST 6A 21V
e络盟:
安全继电器, 4PST, 21VDC, 6A, 通孔安装
艾睿:
Electromechanical Relay 21VDC 666Ohm 6A 3PST-NO/SPST-NC 31x28.6x14.5mm THT Compact Relay
Verical:
Electromechanical Relay 21VDC 666Ohm 6A 3PST-NO/SPST-NC 31x28.6x14.5mm THT Compact Relay
Newark:
# PANASONIC ELECTRIC WORKS SFY3-DC21V Safety Relay, 3PST-NO, SPST-NC, 21 VDC, 6 A, SFY Series, Through Hole, Solder
Online Components:
Electromechanical Relay 21VDC 666Ohm 6A 3PST-NO/SPST-NC31x28.6x14.5mm THT Compact Relay
Electro Sonic:
Relays 21VDC 666Ohm 6A 3PST-NO/SPST-NC31x28.6x14.5mm THT Compact Relay
额定电压DC 30 V
额定电压AC 250 V
触点类型 SPST-NC
触点额定电流 6 A
线圈电压 21 VDC
线圈电流 32 mA
线圈电阻 666 Ω
额定电流Max 6 A
线圈电压DC 21 V
额定功率Max 180W, 1.5KVA
工作温度Max 70 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 10
封装 -
长度 31 mm
宽度 28.6 mm
高度 14.5 mm
封装 -
触点材质 Silver Nickel
工作温度 -40℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
