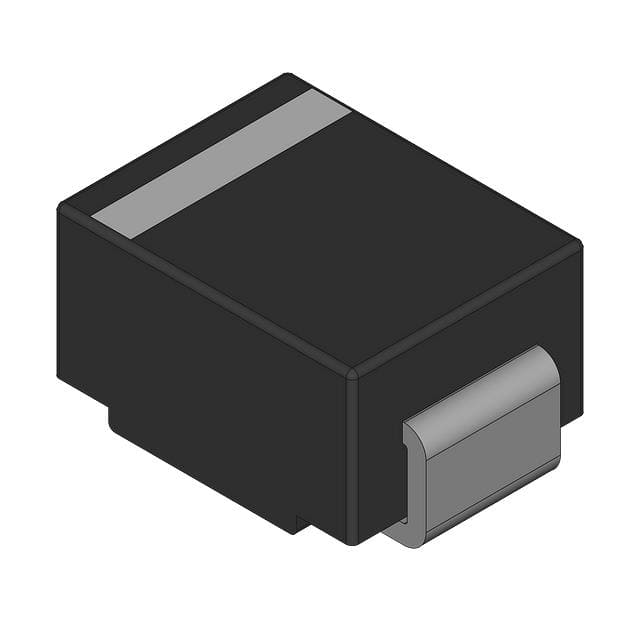

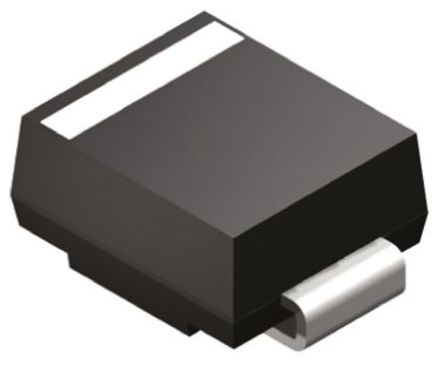

FAIRCHILD SEMICONDUCTOR SS28 肖特基整流器, 单, 80 V, 2 A, DO-214AA, 2 引脚, 850 mV
The is a Schottky Barrier Diode designed with clip-bonded leg structure to provide high thermal performance and low electrical resistance. It features high efficiency, low power loss general propose Schottky rectifier. This product is general usage and suitable for many different applications. This rectifier is exclusively suits for freewheeling, secondary rectification, reverses polarity protection, low voltage and high-frequency inverter applications.
- .
- Glass-passivated Junctions
- .
- High-current capability, low VF
- .
- Colour band denotes cathode
额定电压DC 80.0 V
额定电流 2.00 A
输出电流 ≤2.00 A
针脚数 2
正向电压 850mV @2A
极性 Standard
热阻 75℃/W RθJA
正向电流 2 A
最大正向浪涌电流（Ifsm） 50 A
正向电压Max 850 mV
正向电流Max 2 A
工作温度Max 125 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.75 mm
宽度 3.95 mm
高度 2.45 mm
封装 DO-214AA
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SS28 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
SK28 Diotec Semiconductor | 功能相似 | SS28和SK28的区别 |
