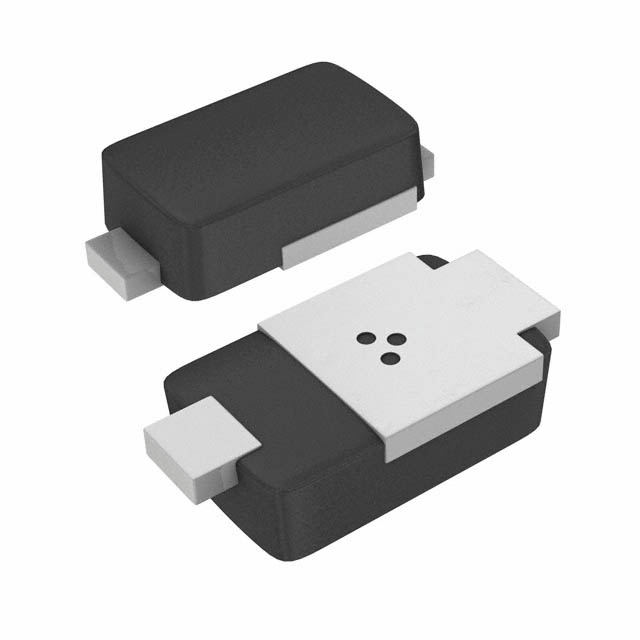

VISHAY SS2PH10-M3/84A 肖特基整流器, 单, 100 V, 2 A, DO-220AA, 2 引脚, 800 mV
The is a high voltage surface mount Schottky Barrier Rectifier with matte tin-plated leads terminals, UL94V-0 flame-rated moulding compound case and colour band denotes the cathode end polarity. High barrier technology for improved high temperature performance. Ideal for automated placement.
针脚数 2
正向电压 800mV @2A
正向电流 2 A
最大正向浪涌电流(Ifsm) 50 A
正向电压Max 800 mV
正向电流Max 2 A
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-220AA-2
高度 1.15 mm
封装 DO-220AA-2
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 安全, Safety, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SS2PH10-M3/84A Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SS2PH10HM3/84A 威世 | 类似代替 | SS2PH10-M3/84A和SS2PH10HM3/84A的区别 |
SS2PH9HM3/84A 威世 | 功能相似 | SS2PH10-M3/84A和SS2PH9HM3/84A的区别 |
