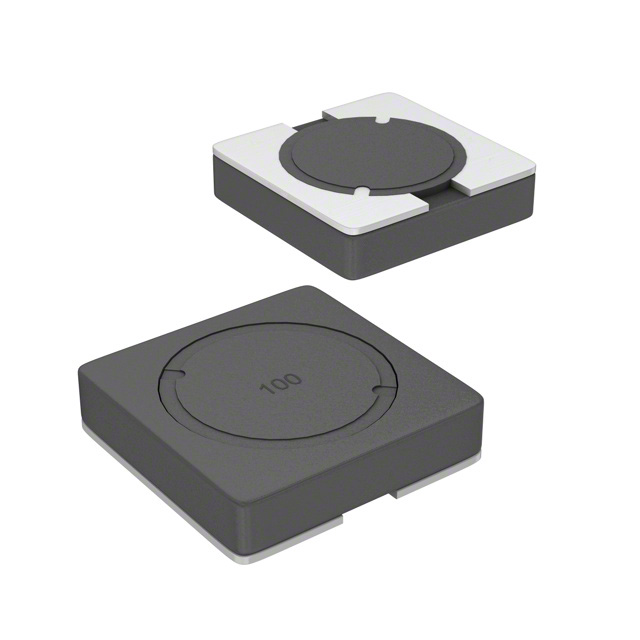

BOURNS SRR4011-100YL 表面贴装功率电感器, SRR4011系列, 10 µH, ± 30%, 屏蔽, 0.24 ohm, 1 A
10µH Shielded Wirewound Inductor 1A 240mOhm Nonstandard
得捷:
FIXED IND 10UH 1A 240 MOHM SMD
立创商城:
10uH ±30% 1A 240mΩ
贸泽:
Fixed Inductors 10uH 15% SMD 4011
e络盟:
功率电感SMD, 10 µH, 1 A, 屏蔽, 830 mA, SRR4011系列, 4.8mm x 4.8mm x 1.15mm
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SRR4011-100YL surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes wirewound technology. It has an inductance of 10u H. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 240m Ohm. This product is 5.1 mm long, 1.3 mm tall and 5.1 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 41M Hz.
安富利:
Ind Power Shielded Wirewound 10uH 30% 100KHz 14Q-Factor Ferrite 1A T/R
Verical:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 14Q-Factor Ferrite 1A 0.24Ohm DCR T/R
Newark:
# BOURNS SRR4011-100YL Surface Mount Power Inductor, SRR4011 Series, 10 H, 30%, Shielded, 0.24 ohm, 1 A
Electro Sonic:
Inductor Power Shielded Wirewound 10uH 30% 100KHz 14Q-Factor Ferrite 1A 240mOhm DCR T/R
额定电流 1 A
容差 ±30 %
电感 10 µH
自谐频率 41 MHz
Q值 14.0
共振频率 41 MHz
电感公差 ±30 %
测试频率 100 kHz
电阻DC) 240 mΩ
额定电流DC 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.24 Ω
安装方式 Surface Mount
引脚数 2
封装 2020
长度 4.8 mm
宽度 4.8 mm
高度 1.3 mm
封装 2020
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
