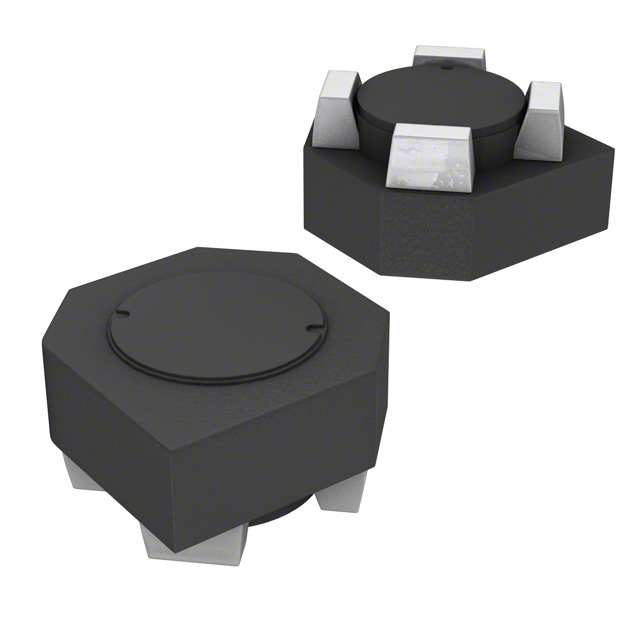

SRU3017-2R2Y

BOURNS  SRU3017-2R2Y  表面贴装功率电感器, SRU3017系列, 2.2 µH, ± 30%, 屏蔽, 0.035 ohm, 1.7 A

屏蔽 绕线 器 35 毫欧 非标准

得捷:
FIXED IND 2.2UH 1.7A 35 MOHM SMD

立创商城:
2.2uH ±30% 1.7A 35mΩ

e络盟:
功率电感SMD, 2.2 µH, 1.7 A, 屏蔽, 980 mA, SRU3017系列, 3.5mm x 3.3mm x 1.8mm

艾睿:
This power SRU3017-2R2Y surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 100MTyp Hz. It has an inductance of 2.2u H. This product is 3.5 mm long, 2 mm tall and 3.5 mm deep. This SMD inductor has a maximum DC current of 1.7 A with a maximum resistance of 35m Ohm. This device utilizes wirewound technology.

安富利:
Ind Power Shielded Wirewound 2.2uH 30% 100KHz 8Q-Factor Ferrite 1.7A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz 8Q-Factor Ferrite 1.7A 35mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz 8Q-Factor Ferrite 1.7A 0.035Ohm DCR T/R

Newark:
Surface Mount Power Inductor, SRU3017 Series, 2.2 H, 30%, Shielded, 0.035 ohm, 1.7 A

Online Components:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz 8Q-Factor Ferrite 1.7A 35mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz 8Q-Factor Ferrite 1.7A 35mOhm DCR T/R

Win Source:
FIXED IND 2.2UH 1.7A 35 MOHM SMD / 2.2 µH Shielded Drum Core, Wirewound Inductor 1.7 A 35mOhm Nonstandard
