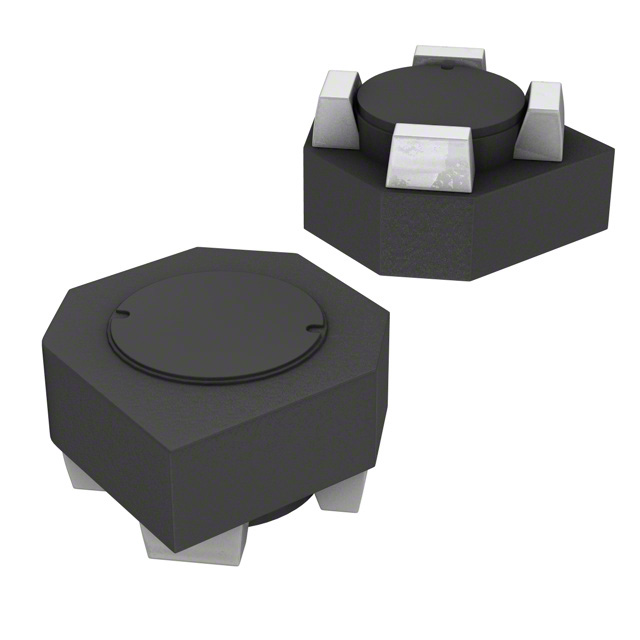

SRU3017-3R3Y

BOURNS  SRU3017-3R3Y  表面贴装功率电感器, SRU3017系列, 3.3 µH, ± 30%, 屏蔽, 0.055 ohm, 1.45 A

屏蔽 绕线 器 55 毫欧 非标准

得捷:
FIXED IND 3.3UH 1.45A 55MOHM SMD

立创商城:
3.3uH ±30% 1.45A 55mΩ

e络盟:
功率电感SMD, 3.3 µH, 1.45 A, 屏蔽, 800 mA, SRU3017系列, 3.5mm x 3.3mm x 1.8mm

艾睿:
An ideal space-saving electronic component is this power SRU3017-3R3Y surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 1.45 A with a maximum resistance of 55m Ohm. This device utilizes wirewound technology. This product is 3.5 mm long, 2 mm tall and 3.5 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 80MTyp Hz. It has an inductance of 3.3u H.

安富利:
Ind Power Shielded Wirewound 3.3uH 30% 100KHz 8Q-Factor Ferrite 1.45A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 8Q-Factor Ferrite 1.45A 55mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 8Q-Factor Ferrite 1.45A 0.055Ohm DCR T/R

Newark:
# BOURNS  SRU3017-3R3Y  Surface Mount Power Inductor, SRU3017 Series, 3.3 H, 30%, Shielded, 0.055 ohm, 1.45 A

MASTER:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 8Q-Factor Ferrite 1.45A 55mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 8Q-Factor Ferrite 1.45A 55mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 8Q-Factor Ferrite 1.45A 55mOhm DCR T/R
