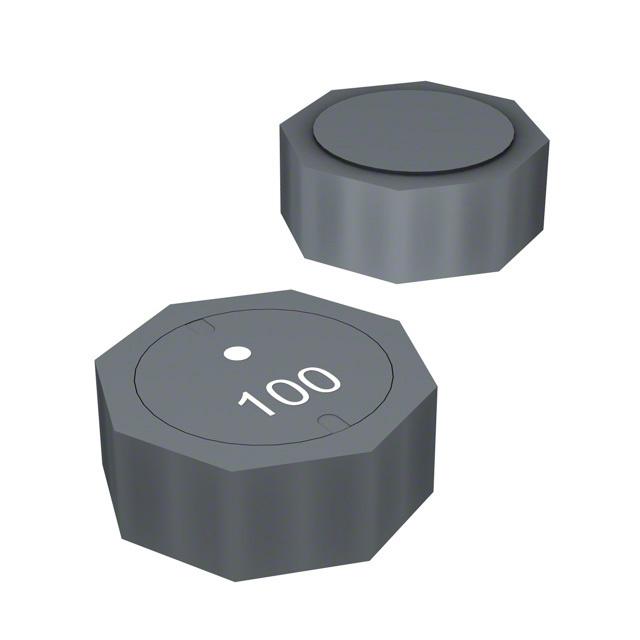

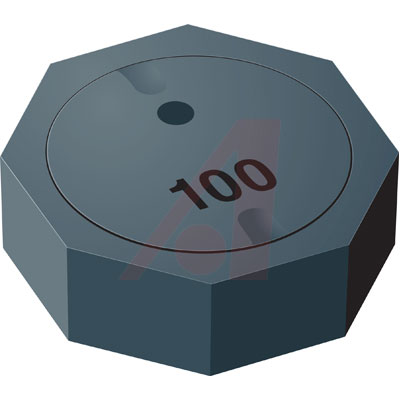

SRU1038-220Y

BOURNS  SRU1038-220Y  表面贴装功率电感器, SRU1038系列, 22 µH, ± 30%, 屏蔽, 0.0558 ohm, 2.2 A

SRU1038 系列磁性屏蔽线绕扼流圈

提供 E6 系列

装置高度 3.8mm

电流高达 7.2A

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 22UH 2.2A 55.8MOHM SMD

欧时:
Bourns SRU1038 系列 屏蔽 铁氧体芯材 22 μH 绕线贴片电感器 SRU1038-220Y, ±30%容差, 2.3A Idc Q:20

贸泽:
Fixed Inductors 22uH 30% SMD 1038

e络盟:
功率电感SMD, 22 µH, 2.2 A, 屏蔽, 2.3 A, SRU1038系列, 10mm x 10mm x 3.8mm

艾睿:
Save valuable space on a PCB with this power SRU1038-220Y surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 12MTyp Hz. This SMD inductor has a maximum DC current of 2.2 A with a maximum resistance of 55.8m Ohm. This product is 10.3 mm long, 4.1 mm tall and 10.3 mm deep. It has an inductance of 22u H. This device is made with wirewound technology.

Allied Electronics:
Inductor; Power Shielded Wirewound; 22uH; 2.2A; 30%; SMD

安富利:
Ind Power Shielded Wirewound 22uH 30% 100KHz 20Q-Factor Ferrite 2.2A T/R

Verical:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 20Q-Factor Ferrite 2.2A 0.0558Ohm DCR T/R

Newark:
# BOURNS  SRU1038-220Y  Surface Mount Power Inductor, SRU1038 Series, 22 µH, 2.2 A, 2.3 A, Shielded, 0.0558 ohm

MASTER:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 20Q-Factor Ferrite 2.2A 55.8mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 20Q-Factor Ferrite 2.2A 55.8mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 20Q-Factor Ferrite 2.2A 55.8mOhm DCR T/R
