SRR4011-2R2YL

BOURNS  SRR4011-2R2YL  表面贴装功率电感器, SRR4011系列, 2.2 µH, ± 30%, 屏蔽, 0.075 ohm, 2 A

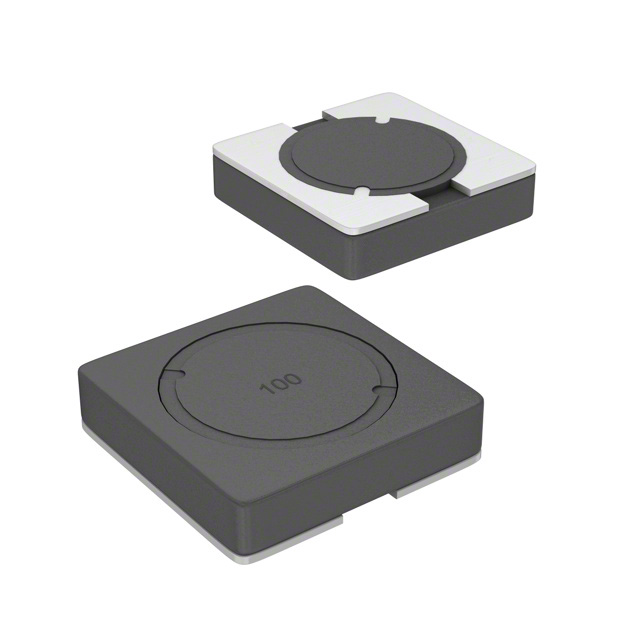

The SRR4011 series SMD shielded Power Inductor with ferrite DR and RI core. It has silver/nickel/tin termination and an enamelled copper wire winding. It is suitable for input/output of DC/DC converters.

.

Available in E6 values

.

-40 to 125°C Operating temperature range

得捷:
FIXED IND 2.2UH 2A 75 MOHM SMD

贸泽:
Fixed Inductors 2.2uH 15% SMD 4011

e络盟:
功率电感SMD, 2.2 µH, 2 A, 屏蔽, 1.8 A, SRR4011系列, 4.8mm x 4.8mm x 1.15mm

艾睿:
Make any circuit look clean and compact using this power SRR4011-2R2YL surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 92M Hz. It has an inductance of 2.2u H. This SMD inductor has a maximum DC current of 2 A with a maximum resistance of 75m Ohm. This product is 5.1 mm long, 1.3 mm tall and 5.1 mm deep.

安富利:
Ind Power Shielded Wirewound 2.2uH 30% 100KHz 11Q-Factor Ferrite 2A T/R

Verical:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz 11Q-Factor Ferrite 2A 0.075Ohm DCR T/R

Newark:
# BOURNS  SRR4011-2R2YL  Surface Mount Power Inductor, SRR4011 Series, 2.2 µH, 2 A, 1.8 A, Shielded, 0.075 ohm

Electro Sonic:
Inductor Power Shielded Wirewound 2.2uH 30% 100KHz 11Q-Factor Ferrite 2A 75mOhm DCR T/R
