SRR4011-3R3YL

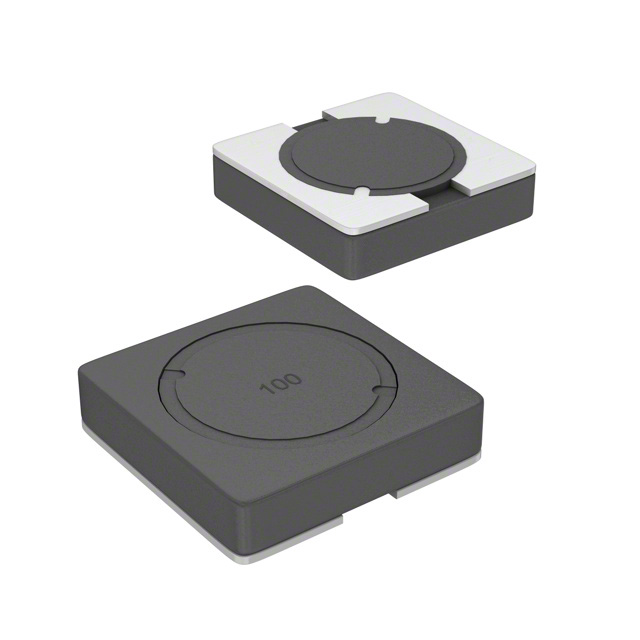

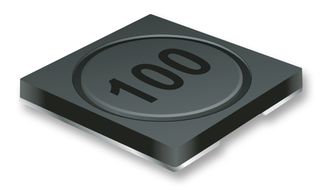

SRR4011-3R3YL图片1
SRR4011-3R3YL图片2
SRR4011-3R3YL图片3
SRR4011-3R3YL图片4
SRR4011-3R3YL图片5
SRR4011-3R3YL图片6
SRR4011-3R3YL图片7
SRR4011-3R3YL图片8
SRR4011-3R3YL概述

BOURNS  SRR4011-3R3YL  表面贴装功率电感器, SRR4011系列, 3.3 µH, ± 30%, 屏蔽, 0.11 ohm, 1.6 A

Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 1.6A 110mOhm DCR T/R


得捷:
FIXED IND 3.3UH 1.6A 110MOHM SMD


立创商城:
3.3uH ±30% 1.6A 110mΩ


e络盟:
功率电感SMD, 3.3 µH, 1.6 A, 屏蔽, 1.4 A, SRR4011系列, 4.8mm x 4.8mm x 1.15mm


艾睿:
This power SRR4011-3R3YL surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This SMD inductor has a maximum DC current of 1.6 A with a maximum resistance of 110m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 67M Hz. It has an inductance of 3.3u H. This device is made with wirewound technology. This product is 5.1 mm long, 1.3 mm tall and 5.1 mm deep.


安富利:
Ind Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 1.6A T/R


Verical:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 1.6A 0.11Ohm DCR T/R


Newark:
# BOURNS  SRR4011-3R3YL  Surface Mount Power Inductor, SRR4011 Series, 3.3 µH, 1.6 A, 1.4 A, Shielded, 0.11 ohm


Online Components:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 1.6A 110mOhm DCR T/R


Electro Sonic:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 10Q-Factor Ferrite 1.6A 110mOhm DCR T/R


SRR4011-3R3YL中文资料参数规格
技术参数

额定电流 1.6 A

容差 ±30 %

电感 3.3 µH

自谐频率 67 MHz

Q值 10.0

共振频率 67 MHz

电感公差 ±30 %

测试频率 100 kHz

电阻DC) ≤110 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 0.11 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装 4.8mm x 4.8mm x 1.15mm

外形尺寸

宽度 4.8 mm

高度 1.3 mm

封装 4.8mm x 4.8mm x 1.15mm

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

数据手册

SRR4011-3R3YL引脚图与封装图
SRR4011-3R3YL引脚图
SRR4011-3R3YL封装图

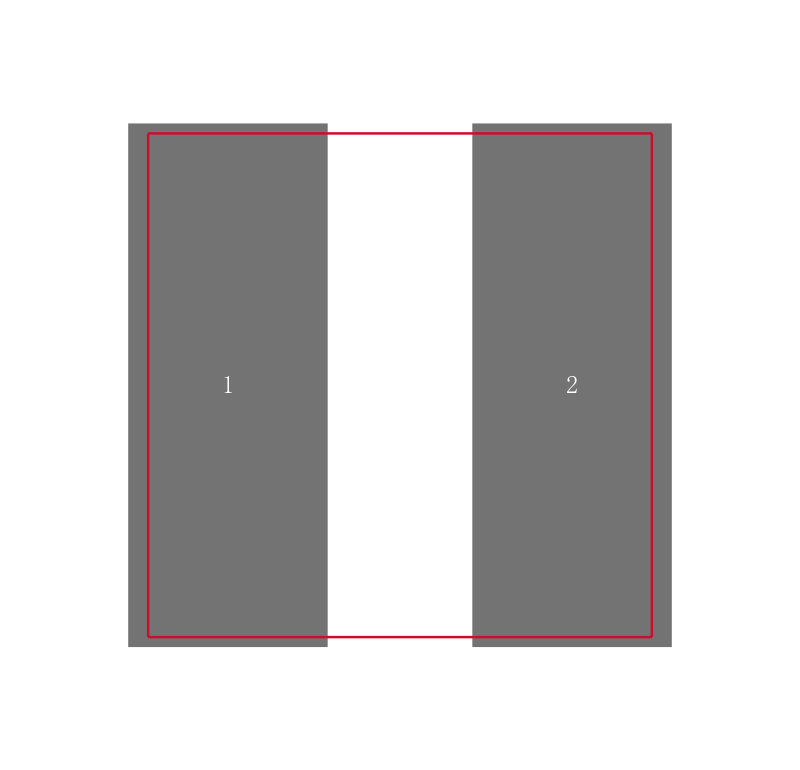

SRR4011-3R3YL封装焊盘图
在线购买SRR4011-3R3YL
型号: SRR4011-3R3YL
制造商: Bourns J.W. Miller 伯恩斯
描述:BOURNS  SRR4011-3R3YL  表面贴装功率电感器, SRR4011系列, 3.3 µH, ± 30%, 屏蔽, 0.11 ohm, 1.6 A
