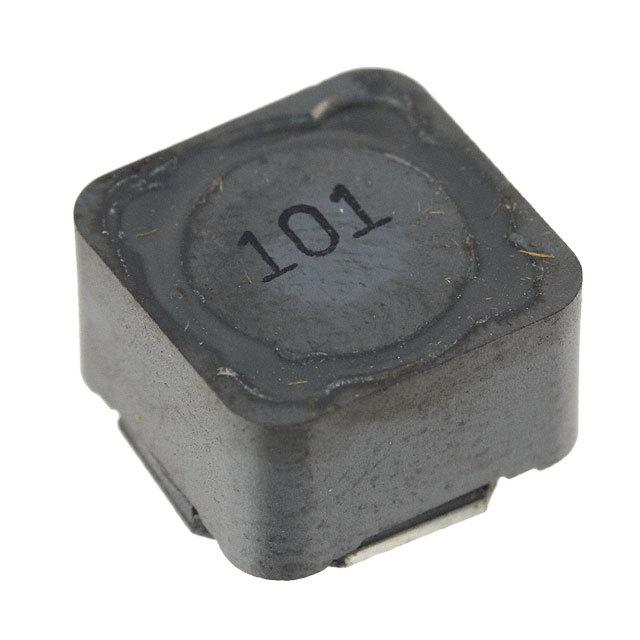

SRR1280-391K

BOURNS  SRR1280-391K  表面贴装功率电感器, SRR1280系列, 390 µH, ± 10%, 屏蔽, 0.68 ohm, 1 A

Features

■ Available in E12 values

■ Inductance as low as 1.1 µH

■ Current rating to 10.2 amps

■ Lead free

.

Applications

■ Input/output of DC/DC converters

■ Power supplies for:

  • Portable communication equipment

  • Camcorders

  • LCD TVs

  • Car radios

得捷:
FIXED IND 390UH 1A 680 MOHM SMD

艾睿:

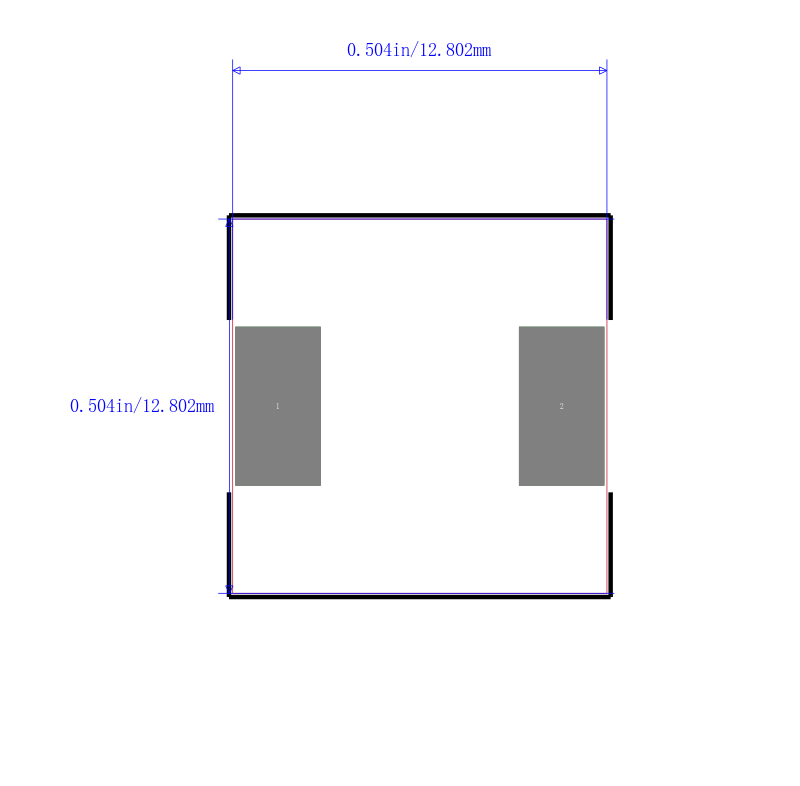

Make any circuit look clean and compact using this power SRR1280-391K surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 680m Ohm. It has an inductance of 390u H. This product is 12.8 mm long, 8 mm tall and 12.8 mm deep. It has a tolerance of 10%. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 2.7MTyp Hz.

安富利:
Ind Power Shielded Wirewound 390uH 10% 100KHz 20Q-Factor Ferrite 1A T/R

Chip1Stop:
Ind Power Shielded Wirewound 390uH 10% 100KHz 20Q-Factor Ferrite 1A T/R

Verical:
Inductor Power Shielded Wirewound 390uH 10% 100KHz 20Q-Factor Ferrite 1A 680mOhm DCR T/R

MASTER:
Inductor Power Shielded Wirewound 390uH 10% 1KHz 20Q-Factor Ferrite 1A 680mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 390uH 10% 100KHz 20Q-Factor Ferrite 1A 680mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 390uH 10% 1KHz 20Q-Factor Ferrite 1A 680mOhm DCR T/R
