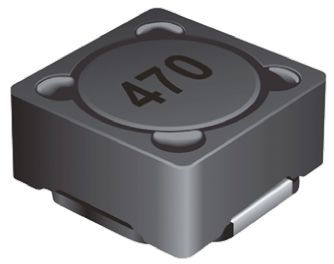

SRR1280-4R7Y

BOURNS  SRR1280-4R7Y.  电感, 屏蔽, 4.7UH, 8.8A, SMD

SRR1280 系列磁性屏蔽线绕器

Bourns SRR1280 系列贴片屏蔽式功率电感器为薄型，仅 7.5mm。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机

高电流额定值

特别适合高频率

得捷:
FIXED IND 4.7UH 8.2A 15.5MOHM SM

欧时:
### SRR1280 系列磁性屏蔽线绕电感器Bourns SRR1280 系列贴片屏蔽式功率电感器为薄型，仅 7.5mm。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机高电流额定值 特别适合高频率 ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
4.7uH ±30% 8.2A 15.5mΩ

e络盟:
BOURNS  SRR1280-4R7Y  表面贴装功率电感器, SRR1280系列, 4.7 µH, ± 30%, 屏蔽, 0.0155 ohm, 8.2 A

艾睿:
This power SRR1280-4R7Y surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 30MTyp Hz. It has an inductance of 4.7u H. This product is 12.8 mm long, 8 mm tall and 12.8 mm deep. This SMD inductor has a maximum DC current of 8.2 A with a maximum resistance of 15.5m Ohm.

Allied Electronics:
Inductor; Power; Shielded; Wirewound; 4.7uH; 30%; 8.2A

安富利:
Ind Power Shielded Wirewound 4.7uH 30% 100KHz 22Q-Factor Ferrite 8.2A T/R

Chip1Stop:
Ind Power Shielded Wirewound 4.7uH 30% 100KHz 22Q-Factor Ferrite 8.2A T/R

Verical:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 22Q-Factor Ferrite 8.2A 0.0155Ohm DCR T/R

Newark:
# BOURNS  SRR1280-4R7Y  Surface Mount Power Inductor, SRR1280 Series, 4.7 µH, 8.2 A, 8.8 A, Shielded, 0.0155 ohm

MASTER:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 22Q-Factor Ferrite 8.2A 15.5mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 22Q-Factor Ferrite 8.2A 15.5mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz 22Q-Factor Ferrite 8.2A 15.5mOhm DCR T/R
