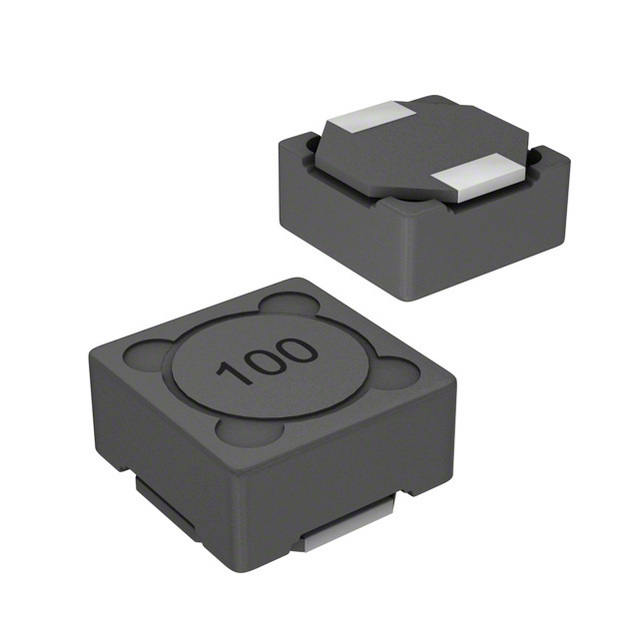

BOURNS SRR1260-101M 表面贴装功率电感器, SRR1260系列, 100 µH, ± 20%, 屏蔽, 0.18 ohm, 1.7 A
SRR1260 系列磁性屏蔽线绕器
Bourns SRR1260 系列贴片屏蔽式功率电感器为薄型,仅 6mm。 应用包括直流/直流转换器和电源的输入/输出,适用于:便携式通信设备;摄像机;液晶电视;汽车收音机
高电流额定值。
特别适合高频率
得捷:
FIXED IND 100UH 1.7A 180MOHM SMD
欧时:
### SRR1260 系列磁性屏蔽线绕电感器Bourns SRR1260 系列贴片屏蔽式功率电感器为薄型,仅 6mm。 应用包括直流/直流转换器和电源的输入/输出,适用于:便携式通信设备;摄像机;液晶电视;汽车收音机高电流额定值。 特别适合高频率 ### Bourns 非标准表面安装电感器(扼流圈)
立创商城:
100uH ±20% 1.7A 180mΩ
e络盟:
功率电感SMD, 100 µH, 1.7 A, 屏蔽, 1.7 A, SRR1260 Series, 12.5mm x 12.5mm x 6mm
艾睿:
This power SRR1260-101M surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device is made with wirewound technology. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 6.07MTyp Hz. It has an inductance of 100u H. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.7 A with a maximum resistance of 180m Ohm. This product is 12.8 mm long, 6.5 mm tall and 12.8 mm deep.
Allied Electronics:
Inductor; Power; Shielded; Wirewound; 100uH; 20%; 1.7A
安富利:
Ind Power Shielded Wirewound 100uH 20% 100KHz 26Q-Factor Ferrite 1.7A T/R
Verical:
Inductor Power Shielded Wirewound 100uH 20% 1KHz 26Q-Factor Ferrite 1.7A 0.18Ohm DCR T/R
Newark:
# BOURNS SRR1260-101M Surface Mount Power Inductor, SRR1260 Series, 100 µH, 1.7 A, 1.7 A, Shielded, 0.18 ohm
MASTER:
Inductor Power - Shielded - Wirewound - 12.5 x 12.5 x 6mm - 100 µH - 1KHz - 1.7A - 180m Ohm.
Online Components:
Inductor Power Shielded Wirewound 100uH 20% 100KHz 26Q-Factor Ferrite 1.7A 180mOhm DCR T/R
Electro Sonic:
Inductor Power - Shielded - Wirewound - 12.5 x 12.5 x 6mm - 100 µH - 1KHz - 1.7A - ...
频率 6.07 MHz
额定电流 1.7 A
容差 ±20 %
电感 100 µH
自谐频率 6.07 MHz
Q值 26.0
电阻 180 mΩ
共振频率 6.07 MHz
电感公差 ±20 %
测试频率 100 kHz
电阻DC) 0.18 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.18 Ω
安装方式 Surface Mount
引脚数 2
封装 12.5mm x 12.5mm x 6mm
长度 12.5 mm
宽度 12.5 mm
高度 6 mm
封装 12.5mm x 12.5mm x 6mm
材质 Steel
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRR1260-101M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
DR125-101-R 库柏 | 功能相似 | SRR1260-101M和DR125-101-R的区别 |
MSS1260-104MLD 线艺 | 功能相似 | SRR1260-101M和MSS1260-104MLD的区别 |
MSS1260T-104MLB 线艺 | 功能相似 | SRR1260-101M和MSS1260T-104MLB的区别 |
