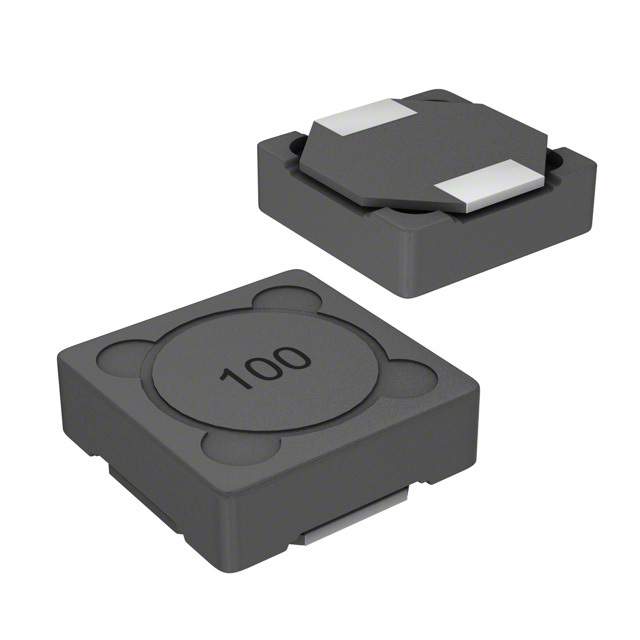

SRR1240-3R9Y

BOURNS  SRR1240-3R9Y  表面贴装功率电感器, SRR1240系列, 3.9 µH, ± 30%, 屏蔽, 0.015 ohm, 6.35 A

3.9 µH 屏蔽 绕线 器 6.35 A 15 毫欧最大 非标准

得捷:
FIXED IND 3.9UH 6.35A 15MOHM SMD

贸泽:
Fixed Inductors 3.9uH 30% SMD 1240

e络盟:
功率电感SMD, 3.9 µH, 6.35 A, 屏蔽, 6.2 A, SRR1240系列, 12.5mm x 12.5mm x 4mm

艾睿:
This power SRR1240-3R9Y surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 6.35 A with a maximum resistance of 15 Ohm. This product is 12.8 mm long, 4.5 mm tall and 12.8 mm deep. It has an inductance of 3.9u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 39MTyp Hz.

Verical:
Inductor Power Shielded Wirewound 3.9uH 30% 100KHz 14Q-Factor Ferrite 6.35A 0.015Ohm DCR T/R

Newark:
# BOURNS  SRR1240-3R9Y  Surface Mount Power Inductor, SRR1240 Series, 3.9 H, 30%, Shielded, 0.015 ohm, 6.35 A

Online Components:
Inductor Power Shielded Wirewound 3.9uH 30% 100KHz 14Q-Factor Ferrite 6.35A 15Ohm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 3.9uH 30% 100KHz 14Q-Factor Ferrite 6.35A 0.015Ohm DCR T/R
