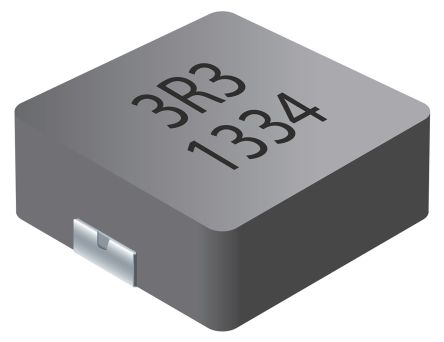

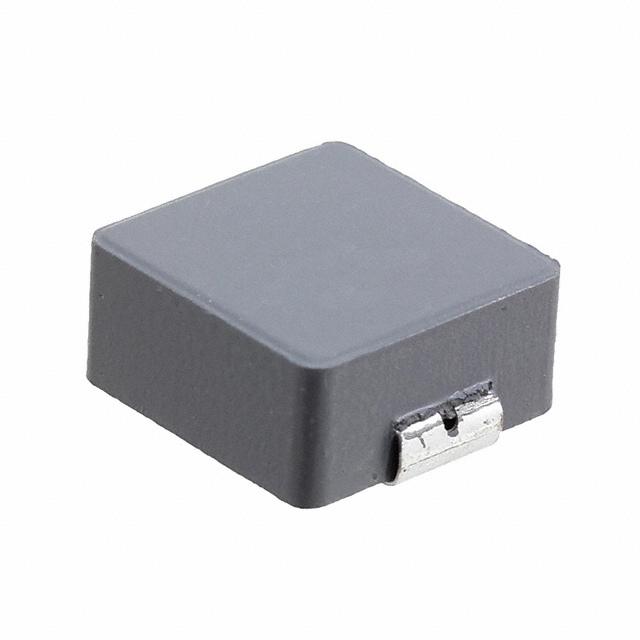

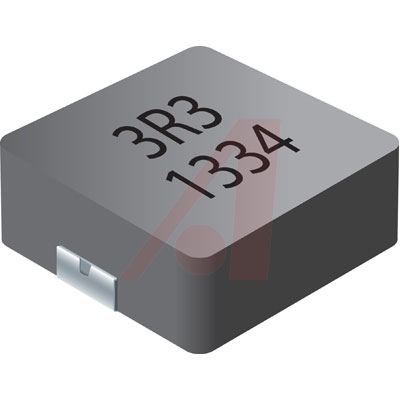

SRP1265A-8R2M

BOURNS  SRP1265A-8R2M  表面贴装功率电感器, AEC-Q200 SRP1265A系列, 8.2 µH, ± 20%, 屏蔽, 0.0155 ohm, 10.5 A

SRP1265A 系列磁性屏蔽式功率器

Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。

**特点和优势：**

SRP1265A 系列电感器为带羰基粉芯的屏蔽结构

高饱和电流

电感范围为 0.15 至 47μH

符合 AEC-Q200

符合 RoHS 标准且无卤

应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、直流-直流转换器和电源

得捷:
FIXED IND 8.2UH 10.5A 15.5 MOHM

立创商城:
8.2uH ±20% 10.5A 12mΩ

欧时:
### SRP1265A 系列磁性屏蔽式功率电感器Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。 **特点和优势：** SRP1265A 系列电感器为带羰基粉芯的屏蔽结构 高饱和电流 电感范围为 0.15 至 47μH 符合 AEC-Q200 符合 RoHS 标准且无卤 应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、直流-直流转换器和电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 8.2 µH, 10.5 A, 屏蔽, 16 A, SRP1265A 系列, 13.5mm x 12.5mm x 6.2mm

艾睿:
This power SRP1265A-8R2M surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 20%. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 10.5 A with a maximum resistance of 15.5m Ohm. It has an inductance of 8.2u H. This product is 14 mm long, 6.4 mm tall and 12.8 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 11MTyp Hz.

Allied Electronics:
Inductor; Shielded Power; AEC-Q200; 8.2uH 20% SMT 1265

安富利:
Ind Power Shielded 8.2uH 20% 100KHz Carbonyl Powder 10.5A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 8.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 10.5A 15.5mOhm DCR Automotive T/R

Verical:
Inductor Power Shielded Wirewound 8.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 10.5A 0.0155Ohm DCR Automotive T/R

Newark:
# BOURNS  SRP1265A-8R2M  Surface Mount Power Inductor, AEC-Q200 SRP1265A Series, 8.2 H, 20%, Shielded, 0.0155 ohm, 10.5 A

MASTER:
Inductor Power Shielded Wirewound 8.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 10.5A 15.5mOhm DCR Automotive T/R

Online Components:
Inductor Power Shielded Wirewound 8.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 10.5A 15.5mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 8.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 10.5A 15.5mOhm DCR Automotive T/R

Win Source:
FIXED IND 8.2UH 10.5A 15.5 MOHM / 8.2 µH Shielded Drum Core, Wirewound Inductor 10.5 A 15.5mOhm Max Nonstandard
