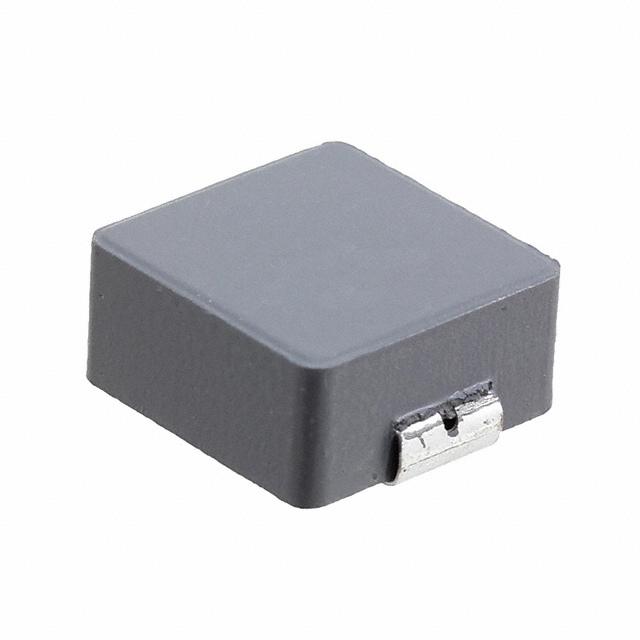

SRP1265A-1R0M

BOURNS  SRP1265A-1R0M  表面贴装功率电感器, AEC-Q200 SRP1265A系列, 1 µH, ± 20%, 屏蔽, 2300 µohm, 30 A

SRP1265A 系列磁性屏蔽式功率器

Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。

**特点和优势：**

SRP1265A 系列电感器为带羰基粉芯的屏蔽结构

高饱和电流

电感范围为 0.15 至 47μH

符合 AEC-Q200

符合 RoHS 标准且无卤

应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、直流-直流转换器和电源

欧时:
Bourns SRP1265A 系列 屏蔽 羰基粉芯材 1 μH 绕线贴片电感器 SRP1265A-1R0M, ±20%容差, 30A Idc

得捷:
FIXED IND 1UH 30A 2.3 MOHM SMD

立创商城:
1uH ±20% 30A 2mΩ

e络盟:
功率电感SMD, 1 µH, 30 A, 屏蔽, 48 A, SRP1265A 系列, 13.5mm x 12.5mm x 6.2mm

艾睿:
This power SRP1265A-1R0M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device is made with wirewound technology. This product is 14 mm long, 6.4 mm tall and 12.8 mm deep. This SMD inductor has a maximum DC current of 30 A with a maximum resistance of 2.3m Ohm. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 45MTyp Hz. It has an inductance of 1u H.

Allied Electronics:
Inductor; Shielded Power; AEC-Q200; 1uH 20% SMT 1265

安富利:
Ind Power Shielded 1uH 20% 100KHz Carbonyl Powder 30A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 1uH 20% 100KHz 20Q-Factor Carbonyl Powder 30A 2.3mOhm DCR Automotive T/R

Verical:
Inductor Power Shielded Wirewound 1uH 20% 100KHz 30Q-Factor Carbonyl Powder 30A 0.0023Ohm DCR Automotive T/R

Newark:
# BOURNS  SRP1265A-1R0M  Surface Mount Power Inductor, AEC-Q200 SRP1265A Series, 1 H, 20%, Shielded, 2300 ohm, 30 A

Online Components:
Inductor Power Shielded Wirewound 1uH 20% 100KHz 20Q-Factor Carbonyl Powder 30A 2.3mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 1uH 20% 100KHz 20Q-Factor Carbonyl Powder 30A 2.3mOhm DCR Automotive T/R
