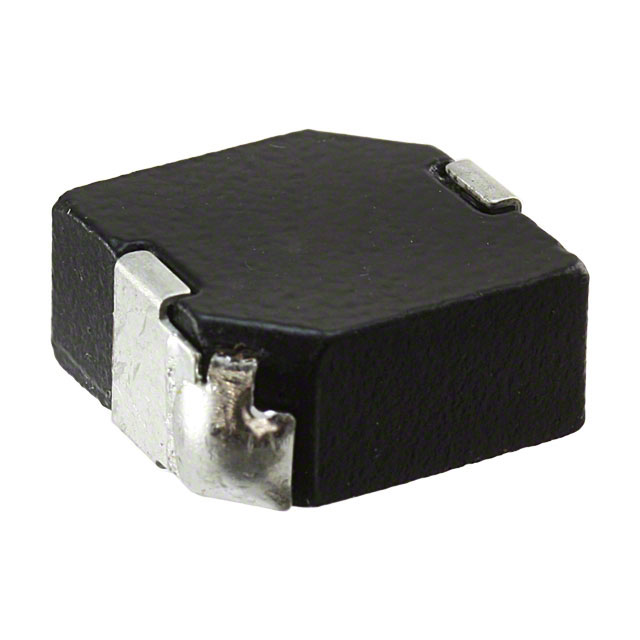

SRP1270-100M

BOURNS  SRP1270-100M  表面贴装功率电感器, SRP1270系列, 10 µH, ± 20%, 屏蔽, 0.0168 ohm, 10 A

SRP1270 系列磁性屏蔽线绕扼流圈

屏蔽结构

最高安装高度为 7.0mm

额定电流高达 41A

符合 RoHs

产品尺寸 13.7 x 7 mm

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 10UH 10A 16.8 MOHM SMD

欧时:
Bourns SRP1270 系列 屏蔽 铁芯材 10 μH 绕线贴片电感器 SRP1270-100M, ±20%容差, 16A Idc

立创商城:
10uH ±20% 10A 16.8mΩ

艾睿:
Make any circuit look clean and compact using this power SRP1270-100M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 10MTyp Hz. This device is made with wirewound technology. It has a tolerance of 20%. This product is 13.7 mm long, 7 mm tall and 13.7 mm deep. This SMD inductor has a maximum DC current of 10 A with a maximum resistance of 16.8m Ohm. It has an inductance of 10u H.

Allied Electronics:
Inductor; Power; Shielded; Wirewound; 10uH; 20%; 10A

安富利:
Ind Power Shielded Wirewound 10uH 20% 100KHz Iron 10A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Iron 10A 16.8mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Iron 10A 0.0168Ohm DCR T/R

Newark:
# BOURNS  SRP1270-100M  Surface Mount Power Inductor, SRP1270 Series, 10 µH, 10 A, 16 A, Shielded, 0.0168 ohm

MASTER:
Inductor Power - Shielded - Wirewound - 13.7 x 13.7 x 7mm - 10 uH - 100KHz - 10A - 16.8m Ohm.

Online Components:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Iron 10A 16.8mOhm DCR T/R

Electro Sonic:
Inductor Power - Shielded - Wirewound - 13.7 x 13.7 x 7mm - 10 uH - 100KHz - 10A - ...
