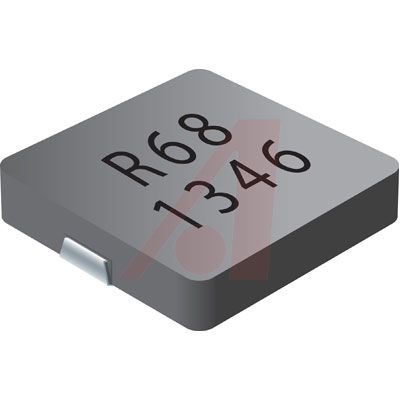

SRP1238A-2R2M

BOURNS  SRP1238A-2R2M  表面贴装功率电感器, AEC-Q200 SRP1238A系列, 2.2 µH, ± 20%, 屏蔽, 8000 µohm, 16 A

SRP1238A 系列磁性屏蔽式功率器

Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。

**特点和优势：**

SRP1238A 系列电感器具有屏蔽结构

羰基粉芯

高饱和电流

电感范围 0.10 μH 至 10 μH

符合 AEC-Q200

符合 RoHS 标准且无卤

应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、直流-直流转换器和电源

得捷:
FIXED IND 2.2UH 16A 8 MOHM SMD

立创商城:
2.2uH ±20% 16A 6.3mΩ

欧时:
### SRP1238A 系列磁性屏蔽式功率电感器Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。 **特点和优势：** SRP1238A 系列电感器具有屏蔽结构 羰基粉芯 高饱和电流 电感范围 0.10 μH 至 10 μH 符合 AEC-Q200 符合 RoHS 标准且无卤 应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、直流-直流转换器和电源 ### Bourns 非标准表面安装电感器（扼流圈）

艾睿:
This power SRP1238A-2R2M surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 2.2u H. This product is 14 mm long, 3.5 mm tall and 12.8 mm deep. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 25MTyp Hz. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 16 A with a maximum resistance of 8m Ohm.

Allied Electronics:
Inductor; Shielded Power; AEC-Q200; 2.2uH 20% SMT 1238

安富利:
Ind Power Shielded 2.2uH 20% 100KHz Carbonyl Powder 16A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 16A 8mOhm DCR Automotive T/R

Verical:
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 16A 0.008Ohm DCR Automotive T/R

Newark:
# BOURNS  SRP1238A-2R2M  Surface Mount Power Inductor, AEC-Q200 SRP1238A Series, 2.2 H, 20%, Shielded, 8000 ohm, 16 A

Online Components:
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 16A 8mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 20Q-Factor Carbonyl Powder 16A 8mOhm DCR Automotive T/R
