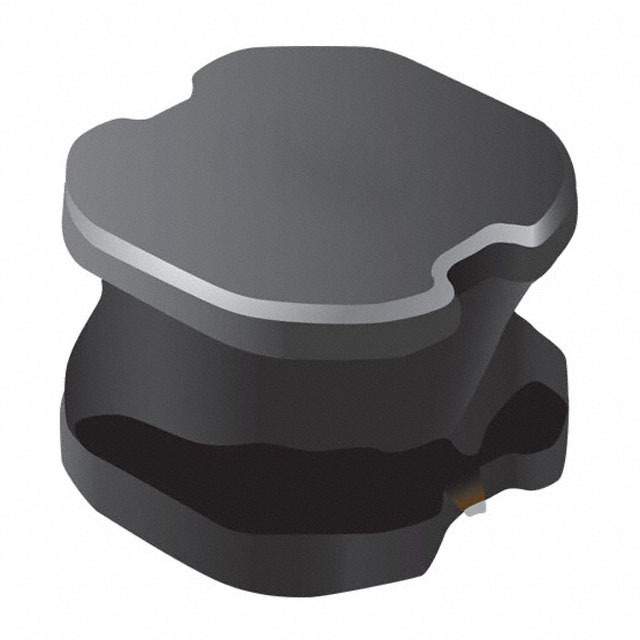

BOURNS SRN6045-8R2Y 表面贴装功率电感器, SRN6045系列, 8.2 µH, ± 20%, 屏蔽, 0.055 ohm, 2.7 A
SRN6045 系列半磁性屏蔽线绕扼流圈
Bourns SRN6045 系列 SMD 半屏蔽功率器,电感范围为 1-220uH,额定电流高达 8A。适用于汽车行业,因为这些电感器符合 AEC-Q200 标准。
得捷:
FIXED IND 8.2UH 2.7A 55 MOHM SMD
欧时:
Bourns SRN6045 系列 屏蔽 铁氧体芯材 8.2 μH 绕线贴片电感器 SRN6045-8R2Y, ±30%容差, 3.3A Idc
立创商城:
8.2uH ±30% 2.7A 55mΩ
e络盟:
功率电感SMD, 8.2 µH, 2.7 A, 半屏蔽, 3.3 A, SRN6045系列, 6mm x 6mm x 4.5mm
艾睿:
This power SRN6045-8R2Y surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 8.2u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 18MTyp Hz. This product is 6.2 mm long, 4.5 mm tall and 6.2 mm deep. This SMD inductor has a maximum DC current of 2.7 A with a maximum resistance of 55m Ohm. This device utilizes wirewound technology.
Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 8.2 uH; Tol 30%; Cur-Rtg 2.7 A; SMT
安富利:
Ind Power Semi-Shielded Wirewound 8.2uH 30% 100KHz Ferrite 2.7A T/R
Verical:
Inductor Power Semi-Shielded Wirewound 8.2uH 30% 100KHz 15Q-Factor Ferrite 2.7A 0.055Ohm DCR T/R
Newark:
# BOURNS SRN6045-8R2Y Surface Mount Power Inductor, SRN6045 Series, 8.2 µH, 2.7 A, 3.3 A, Shielded, 0.055 ohm
MASTER:
Inductor Power Semi-Shielded Wirewound 8.2uH 30% 100KHz 15Q-Factor Ferrite 2.7A 55mOhm DCR T/R
Online Components:
Inductor Power Semi-Shielded Wirewound 8.2uH 30% 100KHz 15Q-Factor Ferrite 2.7A 55mOhm DCR T/R
Electro Sonic:
Inductor Power Semi-Shielded Wirewound 8.2uH 30% 100KHz 15Q-Factor Ferrite 2.7A 55mOhm DCR T/R
额定电流 2.7 A
容差 ±30 %
电感 8.2 µH
自谐频率 18 MHz
Q值 15
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤55 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.055 Ω
安装方式 Surface Mount
引脚数 2
封装 6mm x 6mm x 4.5mm
长度 6 mm
宽度 6 mm
高度 4.5 mm
封装 6mm x 6mm x 4.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 直流 - 直流转换器, 电源, 数字视频, 电视
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRN6045-8R2Y Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MCSDRH73B-8R2MHF Multicomp | 功能相似 | SRN6045-8R2Y和MCSDRH73B-8R2MHF的区别 |
