SRP1238A-1R8M

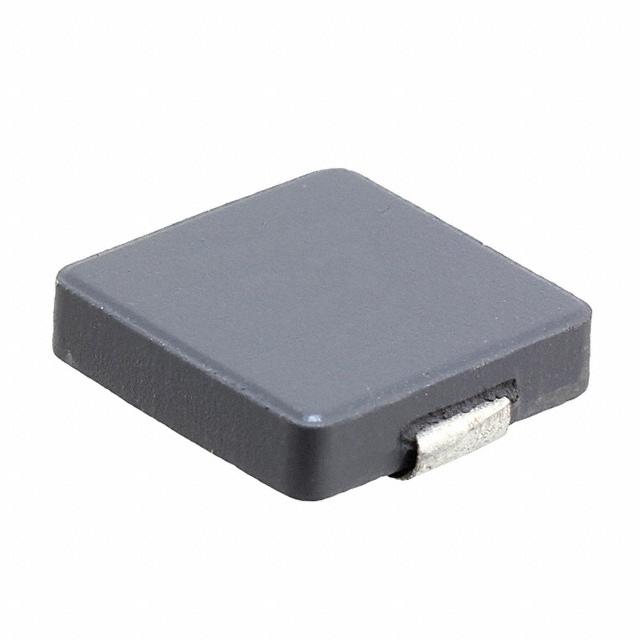

BOURNS  SRP1238A-1R8M  表面贴装功率电感器, AEC-Q200 SRP1238A系列, 1.8 µH, ± 20%, 屏蔽, 7000 µohm, 17 A

SRP1238A 系列磁性屏蔽式功率器

Bourns SRP 系列高电流电感器具有羰基粉芯且符合 AEC-Q200。

**特点和优势：**

SRP1238A 系列电感器具有屏蔽结构

羰基粉芯

高饱和电流

电感范围 0.10 μH 至 10 μH

符合 AEC-Q200

符合 RoHS 标准且无卤

应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、直流-直流转换器和电源

得捷:
FIXED IND 1.8UH 17A 7 MOHM SMD

欧时:
### SRP1238A 系列磁性屏蔽式功率电感器SRP1238A 系列电感器具有屏蔽结构 羰基粉芯 高饱和电流 电感范围为 0.10 至 10μH 应用包括汽车系统（驾驶员辅助、信息、娱乐和照明）、直流/直流转换器和电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 1.8 µH, 17 A, 屏蔽, 30 A, SRP1238A 系列, 13.5mm x 12.5mm x 3.3mm

艾睿:
This power SRP1238A-1R8M surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 14 mm long, 3.5 mm tall and 12.8 mm deep. This SMD inductor has a maximum DC current of 17 A with a maximum resistance of 7m Ohm. It has an inductance of 1.8u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 27MTyp Hz. It has a tolerance of 20%. This device is made with wirewound technology.

Allied Electronics:
Inductor; Shielded Power; AEC-Q200; 1.8uH 20% SMT 1238

安富利:
Ind Power Shielded 1.8uH 20% 100KHz Carbonyl Powder 17A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 1.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 17A 7mOhm DCR Automotive T/R

Verical:
Inductor Power Shielded Wirewound 1.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 17A 0.007Ohm DCR Automotive T/R

Online Components:
Inductor Power Shielded Wirewound 1.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 17A 7mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 1.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 17A 7mOhm DCR Automotive T/R
