SRN6045-680M

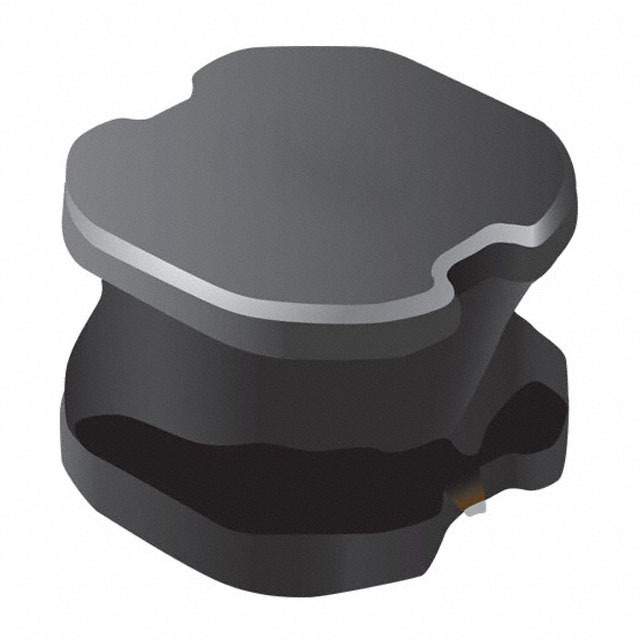

BOURNS  SRN6045-680M  表面贴装功率电感器, SRN6045系列, 68 µH, ± 20%, 半屏蔽, 0.351 ohm, 900 mA

SRN6045 系列半磁性屏蔽线绕扼流圈

Bourns SRN6045 系列 SMD 半屏蔽功率器，电感范围为 1-220uH，额定电流高达 8A。适用于汽车行业，因为这些电感器符合 AEC-Q200 标准。

得捷:
FIXED IND 68UH 900MA 351MOHM SMD

欧时:
### SRN6045 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN6045 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4.5mm Inductance range from 1 to 100μH Rated current of up to 4.2A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
68uH ±20% 900mA 351mΩ

贸泽:
固定电感器 68uH 20% SMD 6045

e络盟:
功率电感SMD, 68 µH, 900 mA, 半屏蔽, 1 A, SRN6045 Series, 6mm x 6mm x 4.5mm

艾睿:
Inductor Power Semi-Shielded Wirewound 68uH 20% 100KHz 13Q-Factor Ferrite 0.9A 0.351Ohm DCR T/R

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 68 uH; Tol 20%; Cur-Rtg 0.9 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 68uH 20% 100KHz Ferrite 900mA T/R

Chip1Stop:
Inductor Power Semi-Shielded Wirewound 68uH 20% 100KHz 13Q-Factor Ferrite 900mA 351mOhm DCR T/R

Verical:
Inductor Power Semi-Shielded Wirewound 68uH 20% 100KHz 13Q-Factor Ferrite 0.9A 0.351Ohm DCR T/R

Newark:
# BOURNS  SRN6045-680M  Surface Mount Power Inductor, SRN6045 Series, 68 µH, 900 mA, 1 A, Semishielded, 0.351 ohm

MASTER:
Inductor Power - Semi-Shielded - Wirewound - 6 x 6 x 4.5mm - 68 µH - 100KHz - 900mA - 351m Ohm.

Online Components:
Inductor Power Semi-Shielded Wirewound 68uH 20% 100KHz 13Q-Factor Ferrite 900mA 351mOhm DCR T/R

Electro Sonic:
Inductor Power - Semi-Shielded - Wirewound - 6 x 6 x 4.5mm - 68 µH - 100KHz - 900mA - ...
