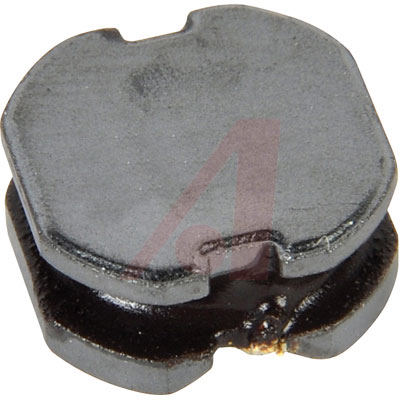

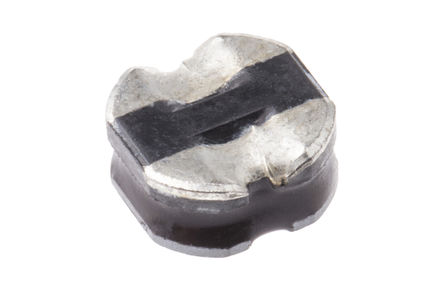

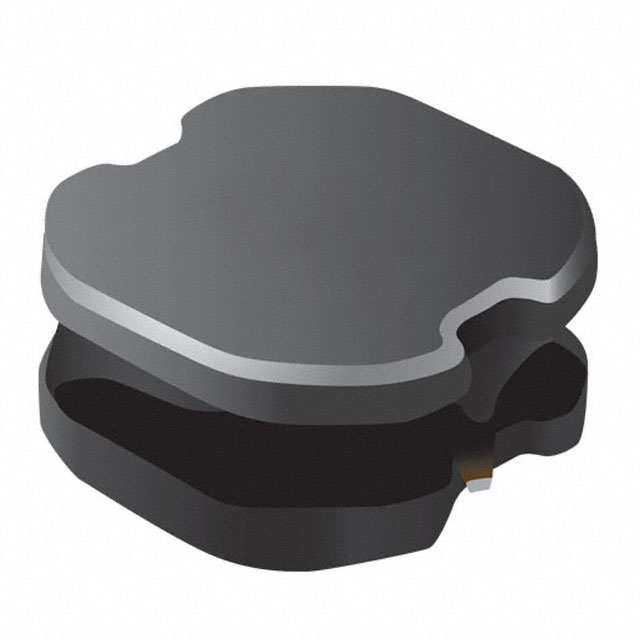

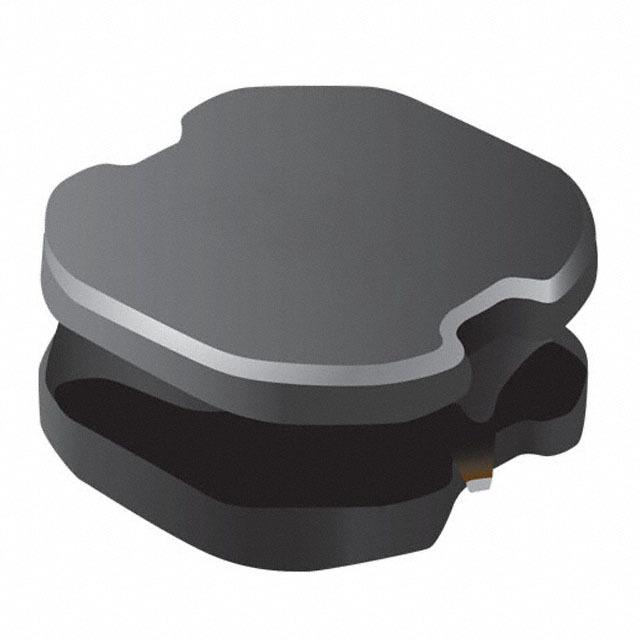

SRN8040-330M

BOURNS  SRN8040-330M  表面贴装功率电感器, SRN8040系列, 33 µH, ± 20%, 屏蔽, 0.145 ohm, 1.7 A

SRN8040 系列半磁性屏蔽线绕扼流圈

Bourns SRN8040 系列贴片式半屏蔽功率器，电感范围为 0.5 至 330uH，额定电流高达 12A，工作温度为 -55°C 至 +125°C。这些电感器适用于汽车行业，符合 AEC-Q200 标准。

### 认可

AEC-Q200

得捷:
FIXED IND 33UH 1.7A 145 MOHM SMD

欧时:
### SRN8040 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN8040 Series SMD Semi-shielded Power Inductors with a high rated current. Component height of 4mm Inductance range from 0.5 to 100uH Rated current of up to 10A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
33uH ±20% 1.7A 145mΩ

e络盟:
功率电感SMD, 33 µH, 1.7 A, 半屏蔽, 1.9 A, SRN8040 Series, 8mm x 8mm x 4mm

艾睿:
An ideal space-saving electronic component is this power SRN8040-330M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 33u H. This product is 8.3 mm long, 4 mm tall and 8.3 mm deep. This SMD inductor has a maximum DC current of 1.7 A with a maximum resistance of 145m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 10MTyp Hz. It has a tolerance of 20%. This device is made with wirewound technology.

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 33 uH; Tol 20%; Cur-Rtg 1.7 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 33uH 20% 100KHz Ferrite 1.7A T/R

Chip1Stop:
Ind Power Semi-Shielded Wirewound 33uH 20% 100KHz Ferrite 1.7A T/R

Verical:
Inductor Power Semi-Shielded Wirewound 33uH 20% 100KHz 20Q-Factor Ferrite 1.7A 0.145Ohm DCR T/R

Newark:
# BOURNS  SRN8040-330M  Surface Mount Power Inductor, SRN8040 Series, 33 µH, 1.7 A, 1.9 A, Shielded, 0.145 ohm

MASTER:
Inductor Power Semi-Shielded Wirewound 33uH 20% 100KHz 20Q-Factor Ferrite 1.7A 145mOhm DCR T/R

Online Components:
Inductor Power Semi-Shielded Wirewound 33uH 20% 100KHz 20Q-Factor Ferrite 1.7A 145mOhm DCR T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 33uH 20% 100KHz 20Q-Factor Ferrite 1.7A 145mOhm DCR T/R
