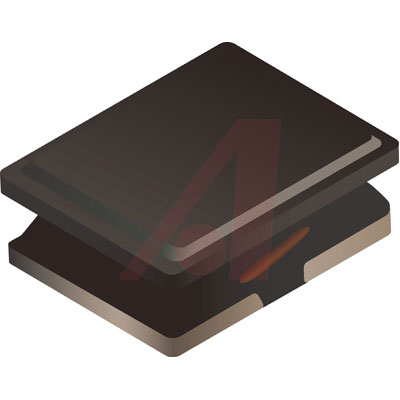

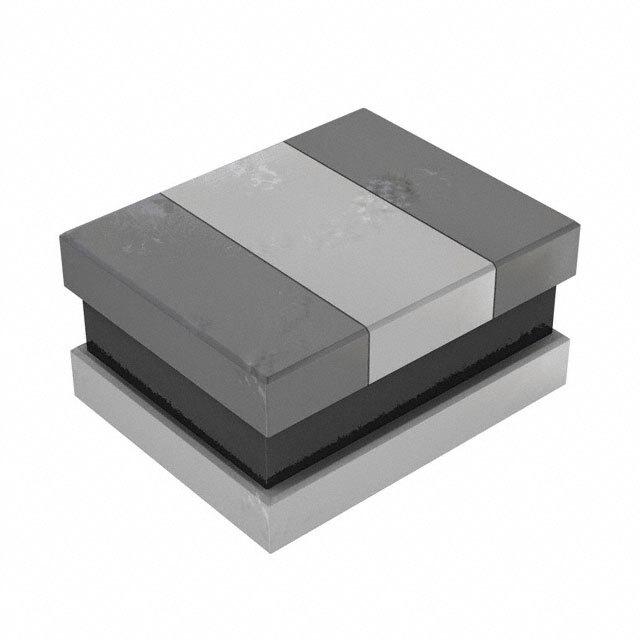

SRN2512-2R2M

BOURNS  SRN2512-2R2M  表面贴装功率电感器, SRN2512系列, 2.2 µH, ± 20%, 半屏蔽, 0.102 ohm, 2.3 A

SRN2512 系列半磁性屏蔽式功率器

SRN2512 系列具有半屏蔽结构和微型尺寸

薄型：1.2 mm

电感范围：0.24 至 2.2 μH

额定电流：最大 4.7 A

应用：直流/直流转换器、笔记本电脑、数码摄像机、HDD、手机

电视和 LCD 显示屏

得捷:
FIXED IND 2.2UH 2.3A 102MOHM SMD

欧时:
Bourns SRN2512 系列 屏蔽 铁氧体芯材 2.2 μH 绕线贴片电感器 SRN2512-2R2M, ±20%容差, 2.3A Idc

立创商城:
2.2uH ±20% 2.3A 102mΩ

e络盟:
功率电感SMD, 2.2 µH, 2.3 A, 半屏蔽, 2.7 A, SRN2512系列, 2.5mm x 2mm x 1.2mm

艾睿:
This power SRN2512-2R2M surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 2.3 A with a maximum resistance of 102m Ohm. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 80M Hz. It has a tolerance of 20%. This product is 2.7 mm long, 1.2 mm tall and 2.35 mm deep. It has an inductance of 2.2u H.

Allied Electronics:
SMD Semi-Shielded Power Inductor; 2.2uH2.3A 20% 2512

安富利:
Ind Power Semi-Shielded Wirewound 2.2uH 20% 1MHz Ferrite 2.3A 2512 T/R

Chip1Stop:
Inductor Power Semi-Shielded Wirewound 2.2uH 20% 1MHz 11Q-Factor Ferrite 2.3A 102mOhm DCR 1008 T/R

Verical:
Inductor Power Semi-Shielded Wirewound 2.2uH 20% 1MHz 11Q-Factor Ferrite 2.3A 0.102Ohm DCR 1008 T/R

Newark:
# BOURNS  SRN2512-2R2M  Surface Mount Power Inductor, SRN2512 Series, 2.2 µH, 2.3 A, 2.7 A, Semishielded, 0.102 ohm

MASTER:
Inductor Power Semi-Shielded Wirewound 2.2uH 20% 1MHz 11Q-Factor Ferrite 2.3A 102mOhm DCR 1008 T/R

Online Components:
Inductor Power Semi-Shielded Wirewound 2.2uH 20% 1MHz 11Q-Factor Ferrite 2.3A 102mOhm DCR 1008 T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 2.2uH 20% 1MHz 11Q-Factor Ferrite 2.3A 102mOhm DCR 1008 T/R
