SRN3015-100M

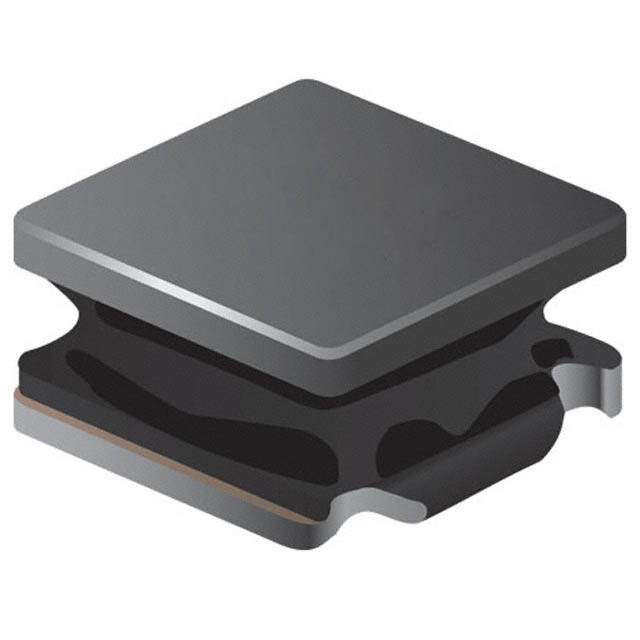

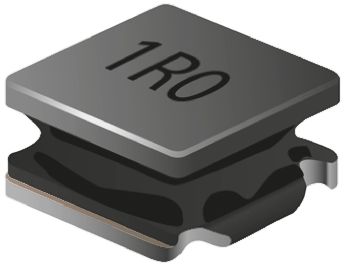

BOURNS  SRN3015-100M  表面贴装功率电感器, SRN3015系列, 10 µH, ± 20%, 屏蔽, 0.276 ohm, 1 A

SRN3015 系列半磁性屏蔽线绕扼流圈

Bourns SRN3015 系列微型 SMD 半屏蔽功率器具有 1 至 47uH 的电感范围和高达 2.2A 的额定电流，工作温度为 -40°C 至 +125°C。这些电感器适用于汽车行业，符合 AEC-Q200 标准。

### 认可

AEC-Q200

得捷:
FIXED IND 10UH 1A 276 MOHM SMD

欧时:
### SRN3015 Series Semi Magnetically Shielded Wire Wound ChokesBourns® SRN3015 Series Miniature SMD Semi-shielded Power Inductors. Component height of 1.5mm Inductance range from 1 to 100μH Rated current of up to 2.35A Applications include: DC/DC converters; Notebook computers; Digital video cameras; HDDs; Cell phones; Televisions, LCD displays ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
10uH ±20% 880mA 276mΩ

e络盟:
功率电感SMD, 10 µH, 1 A, 半屏蔽, 880 mA, SRN3015 Series, 3mm x 3mm x 1.5mm

艾睿:
Inductor Power Semi-Shielded Wirewound 10uH 20% 1MHz 16Q-Factor Ferrite 1A 0.276Ohm DCR 1212 T/R

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 10 uH; Tol 20%; Cur-Rtg 1 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 10uH 20% 1MHz Ferrite 1A 1212 T/R

Chip1Stop:
Ind Power Semi-Shielded Wirewound 10uH 20% 1MHz Ferrite 1A 1212 T/R

Verical:
Inductor Power Semi-Shielded Wirewound 10uH 20% 1MHz 16Q-Factor Ferrite 1A 0.276Ohm DCR 1212 T/R

Newark:
# BOURNS  SRN3015-100M  Surface Mount Power Inductor, SRN3015 Series, 10 µH, 1 A, 880 mA, Shielded, 0.276 ohm

MASTER:

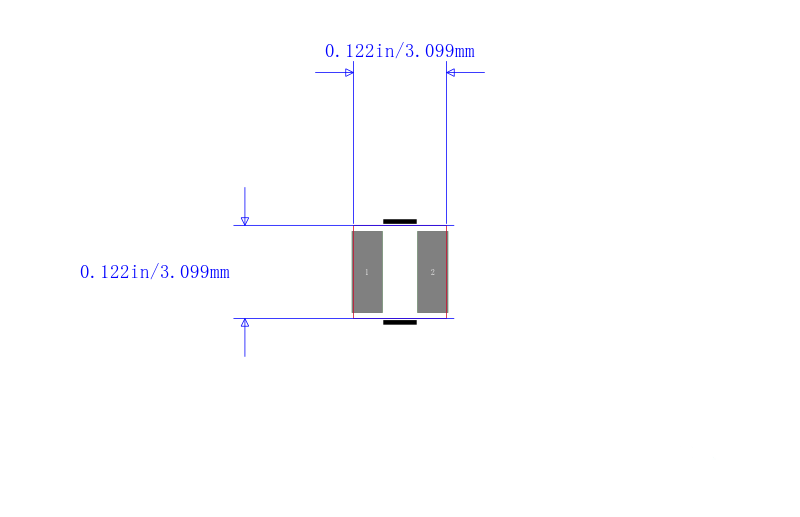

Inductor Power - Semi-Shielded - Wirewound - 3 x 3 x 1.5mm - 10 µH - 1MHz - 1A - 276m Ohm.

Online Components:
Inductor Power Semi-Shielded Wirewound 10uH 20% 1MHz 10Q-Factor Ferrite 1A 276mOhm DCR 1212 T/R

Electro Sonic:
Inductor Power - Semi-Shielded - Wirewound - 3 x 3 x 1.5mm - 10 µH - 1MHz - 1A - ...
