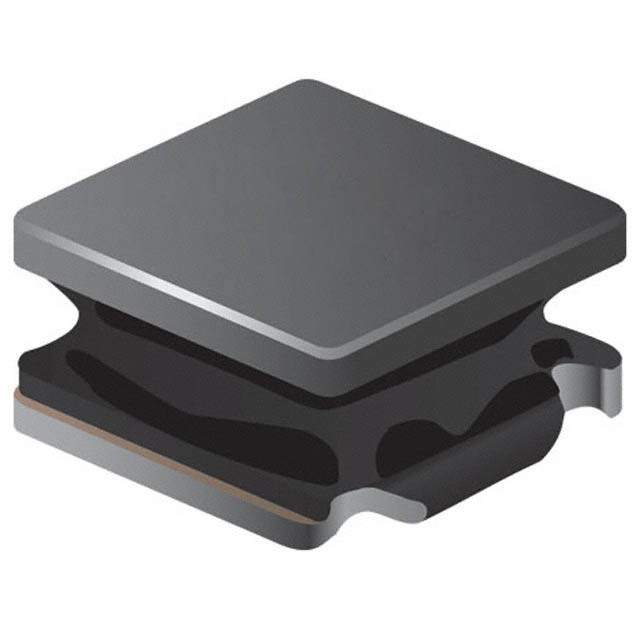

SRN3015-220M

BOURNS  SRN3015-220M.  电感, 22uH, 0.6A, ±20%, 28MHZ

SRN3015 系列半磁性屏蔽线绕扼流圈

Bourns SRN3015 系列微型 SMD 半屏蔽功率器具有 1 至 47uH 的电感范围和高达 2.2A 的额定电流，工作温度为 -40°C 至 +125°C。这些电感器适用于汽车行业，符合 AEC-Q200 标准。

### 认可

AEC-Q200

得捷:
FIXED IND 22UH 600MA 622MOHM SMD

欧时:
Bourns SRN3015 系列 屏蔽 铁氧体芯材 22 μH 绕线贴片电感器 SRN3015-220M, ±20%容差, 600mA Idc

e络盟:
功率电感SMD, 22 µH, 600 mA, 半屏蔽, 580 mA, SRN3015系列, 3mm x 3mm x 1.5mm

艾睿:
Make any circuit look clean and compact using this power SRN3015-220M surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has an inductance of 22u H. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 622m Ohm. This product is 3.1 mm long, 1.5 mm tall and 3.1 mm deep. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 28M Hz. It has a tolerance of 20%.

Allied Electronics:
Inductor; Power; Semi-Shielded; Ind 22 uH; Tol 20%; Cur-Rtg 0.6 A; SMT

安富利:
Ind Power Semi-Shielded Wirewound 22uH 20% 1MHz Ferrite 600mA 1212 T/R

Chip1Stop:
Inductor Power Semi-Shielded Wirewound 22uH 20% 1MHz 17Q-Factor Ferrite 600mA 622mOhm DCR 1212 T/R

Verical:
Inductor Power Semi-Shielded Wirewound 22uH 20% 1MHz 17Q-Factor Ferrite 0.6A 0.622Ohm DCR 1212 T/R

Newark:
Surface Mount Power Inductor, SRN3015 Series, 22 µH, 600 mA, 580 mA, Shielded, 0.622 ohm

MASTER:
Inductor Power Semi-Shielded Wirewound 22uH 20% 1MHz 17Q-Factor Ferrite 600mA 622mOhm DCR 1212 T/R

Online Components:
Inductor Power Semi-Shielded Wirewound 22uH 20% 1MHz 17Q-Factor Ferrite 600mA 622mOhm DCR 1212 T/R

Electro Sonic:
Inductor Power Semi-Shielded Wirewound 22uH 20% 1MHz 17Q-Factor Ferrite 600mA 622mOhm DCR 1212 T/R

Win Source:
FIXED IND 22UH 600MA 622MOHM SMD / 22 µH Semi-Shielded Drum Core, Wirewound Inductor 600 mA 622mOhm Max Nonstandard
