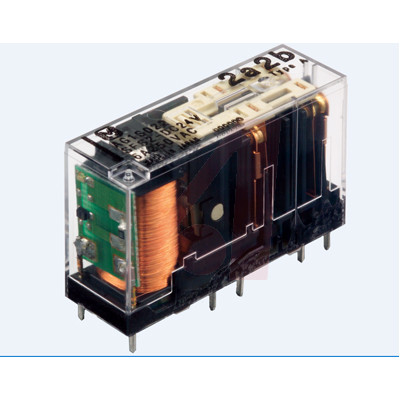

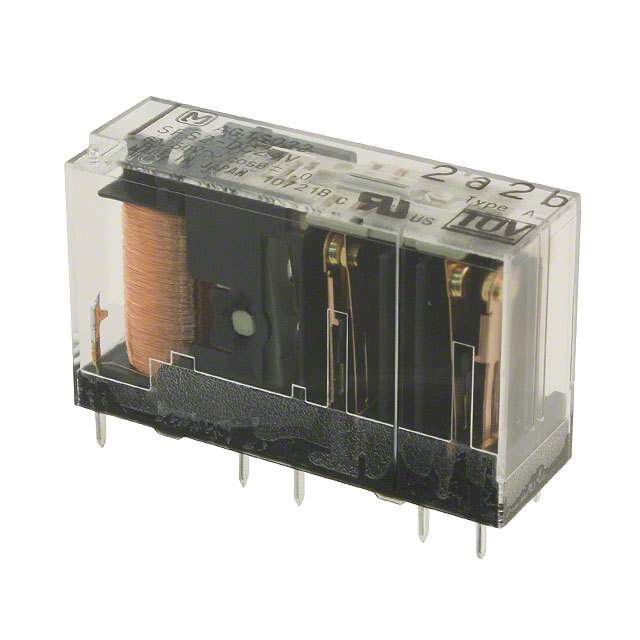

PANASONIC ELECTRIC WORKS SFS5-DC24V 安全继电器, SF Series, 5PST-NO, SPST-NC, 24 VDC, 6 A, 通孔安装, 焊接
The SF series slim compact Safety Relay with forcibly guide contact structure. It has compact size with slim profile relay reduces substrate size. The built-in LED eliminates need for design and mounting of separate LED circuit. High shock resistance and improved anti-shock properties meaning that the relay can be safely used in high shock and vibration environments such as in machine tools and other factory equipment.
额定电压DC 30 V
额定电压AC 250 V
额定电流 6 A
触点类型 5PST-NO
功耗 500 mW
触点额定电流 6 A
线圈电压 24 VDC
线圈电流 20.8 mA
线圈电阻 1.152 KΩ
额定电流Max 6 A
线圈电压DC 24 V
线圈功率 500 mW
额定功率Max 180W, 1.5KVA
额定电压 380 VAC
电源电压 250VAC, 30VDC
安装方式 Through Hole
引脚数 14
封装 插件
高度 24 mm
封装 插件
触点材质 Silver Tin Oxide
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410020
