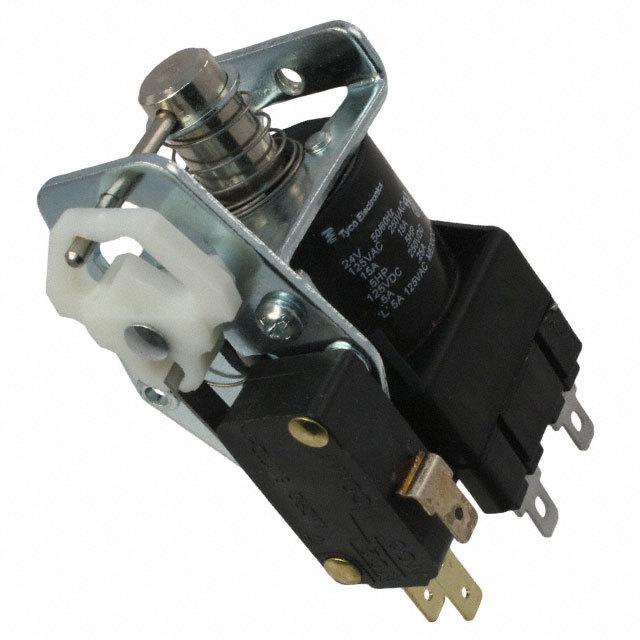

Industrial Relays DPDT 15A 6VDC 5.8Ω IMPULSE,LATCH RELAY
Electromechanical Relay 6VDC 5.8Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
Product Highlights
S89R Series
Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 15 Amps.
Latching Bistable 1 Coil Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY IMPULSE DPDT 15A 6V
艾睿:
Electromechanical Relay 6VDC 5.8Ohm 15A DPDT50.8x50.3x77.47mm Plug-In Impulse Relay
Allied Electronics:
S89R11DAC1-6=SOLENOIDS, 5-1393134-3
Chip1Stop:
Electromechanical Relay 6VDC 5.8Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
Verical:
Electromechanical Relay 6VDC 5.8Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
MASTER:
Power Relay 6VDC 5.8Ohm 15A DPDT50.8x50.3x77.47mm Plug-In Impulse Relay
Online Components:
Electromechanical Relay 6VDC 5.8Ohm 15A DPDT 50.8x50.3x77.47mm Plug-In Impulse Relay
Electro Sonic:
Power Relay 6VDC 5.8Ohm 15A DPDT50.8x50.3x77.47mm Plug-In Impulse Relay
额定电压AC 250 V
输入电压DC 6.00 V
触点类型 DPDT
功耗 6.33 W
触点额定电流 15 A
线圈电压 6 VDC
线圈电流 1035 mA
线圈功率DC 6.33 W
线圈电阻 5.8 Ω
额定电流Max 15 A
线圈电压DC 6 V
线圈功率 6.3 W
工作温度Max 60 ℃
工作温度Min -10 ℃
安装方式 Quick Connect
长度 50.8 mm
宽度 50.3 mm
高度 77.47 mm
触点材质 Silver
工作温度 -10℃ ~ 60℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
