SST25VF020B-80-4C-QAE

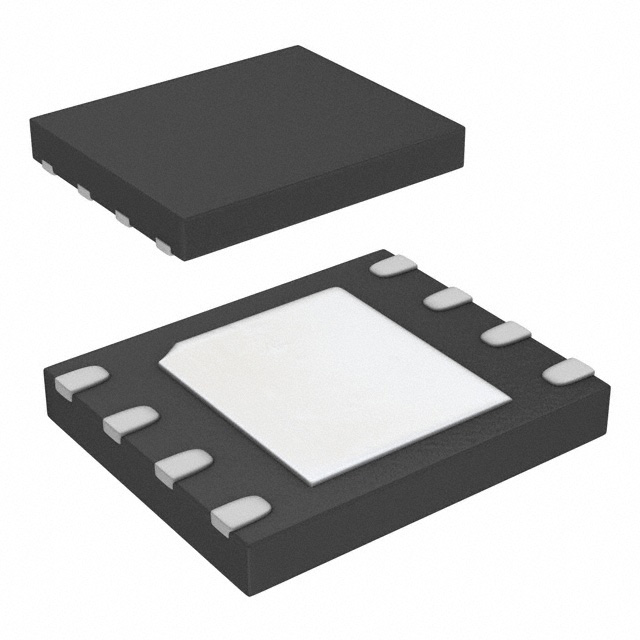

SST25VF 系列 2 Mb 256 K x 8 表面贴装 SPI 串行闪存 - WSON-8

Product Description

The 25 series Serial Flash family features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF020B devices are enhanced with improved operating frequency and even lower power consumption. SST25VF020B SPI serial flash memories are manufactured with SST proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

Features:

• Single Voltage Read and Write Operations

– 2.7-3.6V

• Serial Interface Architecture

– SPI Compatible: Mode 0 and Mode 3

• High Speed Clock Frequency

– Up to 80 MHz

• Superior Reliability

– Endurance: 100,000 Cycles typical

– Greater than 100 years Data Retention

• Low Power Consumption:

– Active Read Current: 10 mA typical

– Standby Current: 5 µA typical

• Flexible Erase Capability

– Uniform 4 KByte sectors

– Uniform 32 KByte overlay blocks

– Uniform 64 KByte overlay blocks

• Fast Erase and Byte-Program:

– Chip-Erase Time: 35 ms typical

– Sector-/Block-Erase Time: 18 ms typical

– Byte-Program Time: 7 µs typical

• Auto Address Increment AAI Programming

– Decrease total chip programming time over Byte-Program operations

• End-of-Write Detection

– Software polling the BUSY bit in Status Register

– Busy Status readout on SO pin in AAI Mode

• Hold Pin HOLD#

– Suspends a serial sequence to the memory without deselecting the device

• Write Protection WP#

– Enables/Disables the Lock-Down function of the status register

• Software Write Protection

– Write protection through Block-Protection bits in status register

• Temperature Range

– Commercial: 0°C to +70°C

– Industrial: -40°C to +85°C

• Packages Available

– 8-lead SOIC 150 mils

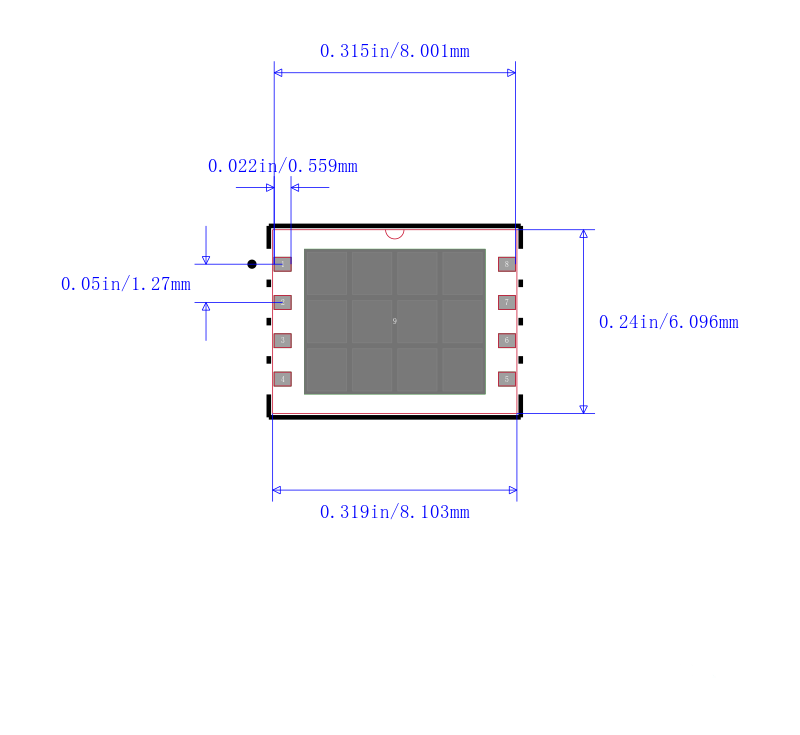

– 8-contact WSON 6mm x 5mm

• All non-Pb lead-free devices are RoHS compliant
