LASCAR SP 400-EB-W 面板显示器, 伏特计, 液晶屏, 4.75V-7.5V

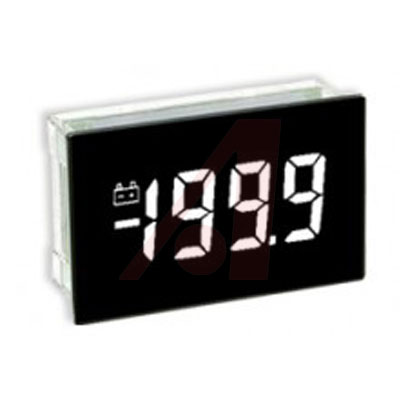

9.75mm Digit Height Voltmeter Module - 9 Pin
The features an enhanced black LCD and 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user selectable. The SP 400-EB-W features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. Enhanced contrast negative mode LCD with white LED backlighting ensures excellent readability under all light conditions. The module is easily fitted into the panel using the fixing clips provided. The design of the panel meter"s housing ensures splash proofing using the supplied seal.
Typical applications comprise of precision instrumentation systems, power supply monitoring, test boxes, panel mount indication & low power voltage measurement
Main features comprise of:
9.75mm 0.38" digit height
200mV d.c. full scale reading
5V operation
Auto-zero & auto-polarity
Programmable decimal points
Enhanced black LCD with white LED backlighting
Low battery warning
Splash proof
### LCD 5.5 至 18 mm 数字高度
