SN74LVC3G04DCUT

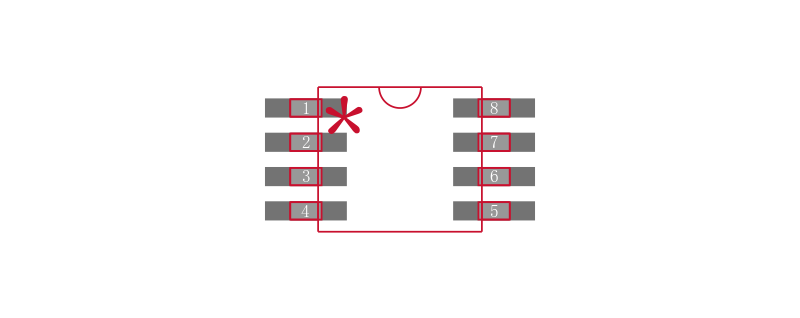

TEXAS INSTRUMENTS  SN74LVC3G04DCUT  非门, LVC系列, 3门, 1输入, 32 mA, 1.65V至5.5V, US8-8

The is a triple Inverter Gate designed for 1.65 to 5.5V VCC operation. The device performs the Boolean function Y = A\\. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

.

Supports 5V VCC operation

.

Inputs accept voltages to 5.5V

.

Maximum tpd of 4.1ns at 3.3V

.

10µA Maximum ICC low power consumption

.

±24mA Output drive at 3.3V

.

Ioff supports live insertion

.

Partial-power-down mode

.

Back-drive protection

.

Can be used as a down translator

.

Latch-up performance exceeds 100mA per JESD 78, Class II

.

ESD protection exceeds JESD 22

.

Green product and no Sb/Br
