SN74LVC2G17DBVR概述

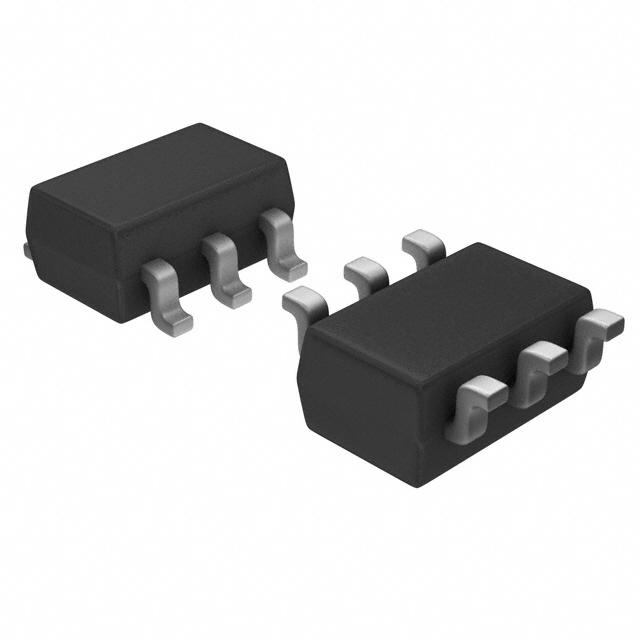

TEXAS INSTRUMENTS  SN74LVC2G17DBVR.  芯片, 施密特触发缓冲器, SOT-23-6, 整卷

The is a Dual Schmitt-trigger Buffer, designed for 1.65 to 5.5V VCC operation. The SN74LVC2G17DBVR device contains two buffers and performs the Boolean function Y = A. The device functions as two independent buffers, but because of Schmitt action, it may have different input threshold levels for positive-going VT+ and negative-going VT- signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. ESD protection exceeds JESD 22, 2000-V human-body model and 1000V charged-device model.

.
Schmitt-trigger inputs provide hysteresis
.
Supports 5V VCC operation
.
Inputs accept voltages to 5.5V
.
Maximum TPD of 5.4ns at 3.3V
.
Low power consumption, 10µA maximum ICC
.
±24mA Output drive at 3.3V
.
<0.8V at VCC = 3.3V, TA = 25°C Typical VOLP output ground bounce
.
>2V at VCC = 3.3V, TA = 25°C Typical VOHV output VOH undershoot
.
Ioff supports live insertion, partial power-down mode operation and back-drive protection
.
Latch-up performance exceeds 100mA per JESD 78, class II
.
Green product and no Sb/Br

Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

SN74LVC2G17DBVR中文资料参数规格
技术参数

电源电压DC 5.00 V, 5.50 V max

输出接口数 2

供电电流 250 mA

通道数 2

针脚数 6

位数 2

传送延迟时间 4.30 ns

逻辑门个数 2

输入数 2

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.65 V

封装参数

安装方式 Surface Mount

引脚数 6

封装 SOT-23-6

外形尺寸

封装 SOT-23-6

物理参数

工作温度 -40℃ ~ 125℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 音频, 便携式器材, 无线, 通信与网络, 成像, 信号处理, 视频和目视, 电源管理, 消费电子产品

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2018/06/27

海关信息

ECCN代码 EAR99

数据手册

SN74LVC2G17DBVR引脚图与封装图
SN74LVC2G17DBVR引脚图
SN74LVC2G17DBVR封装图
SN74LVC2G17DBVR封装焊盘图
在线购买SN74LVC2G17DBVR
型号: SN74LVC2G17DBVR
制造商: TI 德州仪器
描述:TEXAS INSTRUMENTS  SN74LVC2G17DBVR.  芯片, 施密特触发缓冲器, SOT-23-6, 整卷
替代型号SN74LVC2G17DBVR
型号/品牌 代替类型 替代型号对比

SN74LVC2G17DBVR

TI 德州仪器

当前型号

当前型号

SN74LVC2G17DBVT

德州仪器

类似代替

SN74LVC2G17DBVR和SN74LVC2G17DBVT的区别

SN74LVC2G17DBVTG4

德州仪器

类似代替

SN74LVC2G17DBVR和SN74LVC2G17DBVTG4的区别

SN74LVC2G17DBVRE4

德州仪器

类似代替

SN74LVC2G17DBVR和SN74LVC2G17DBVRE4的区别
