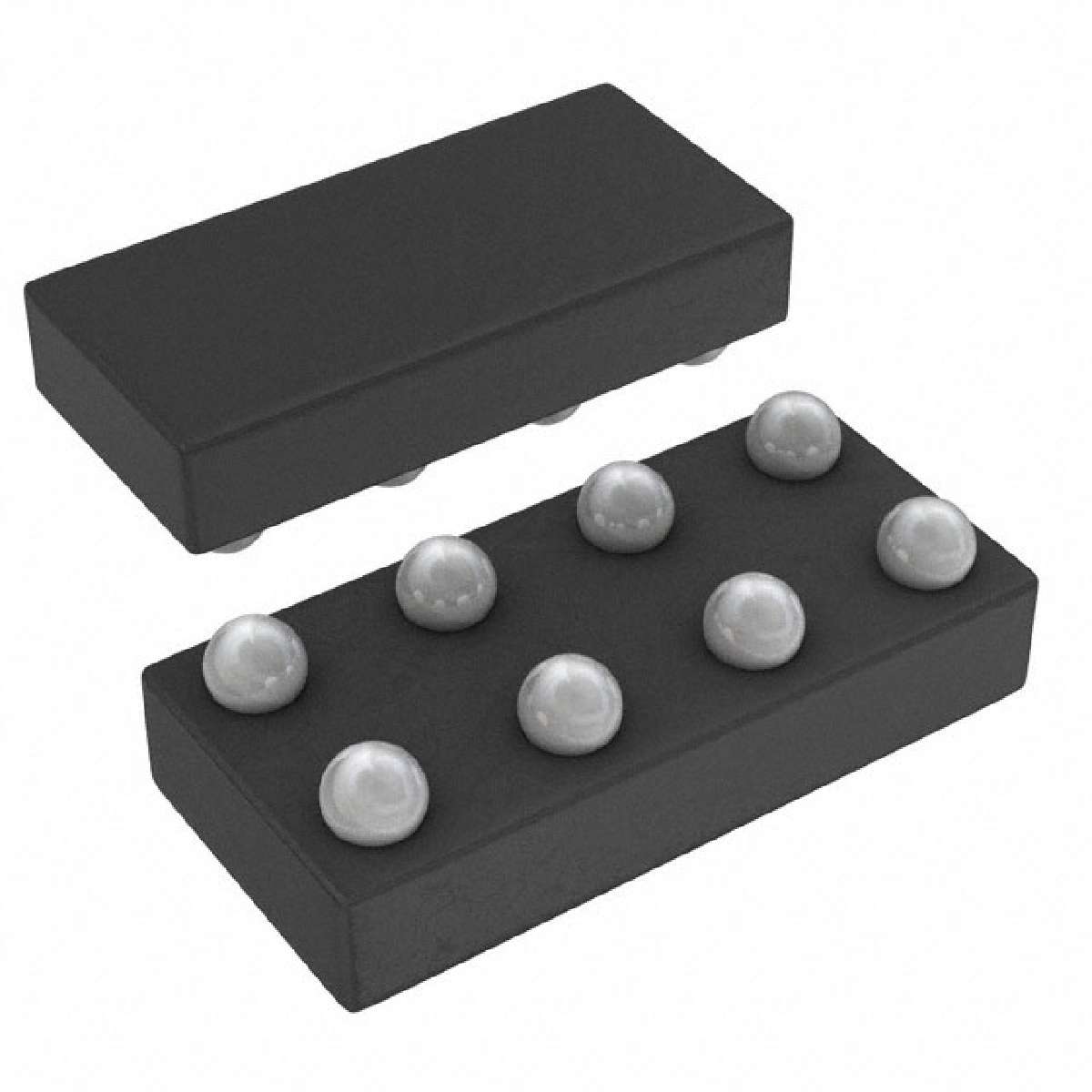

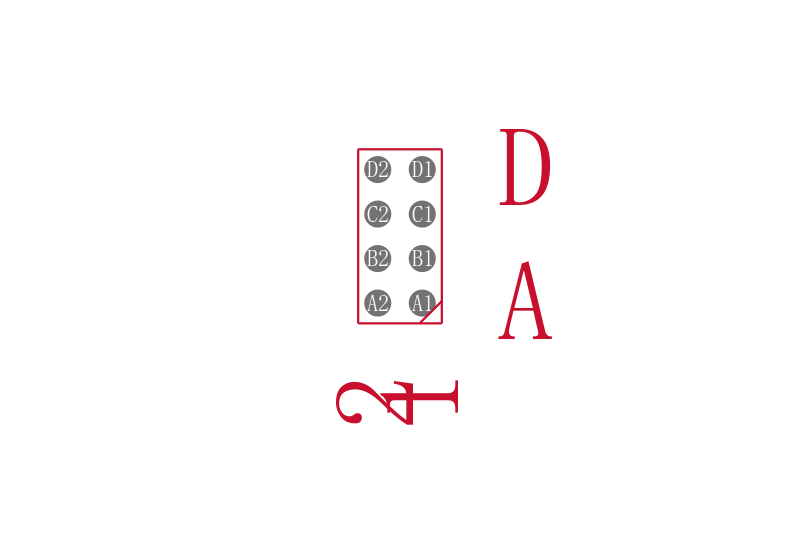

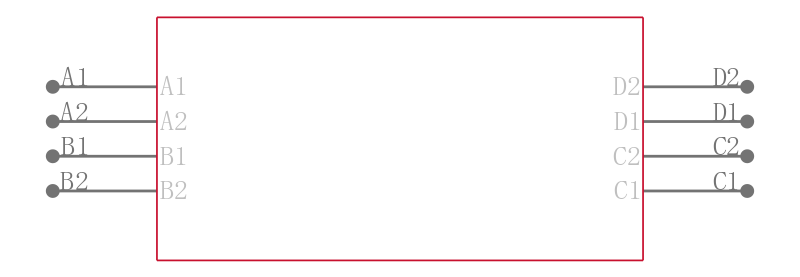

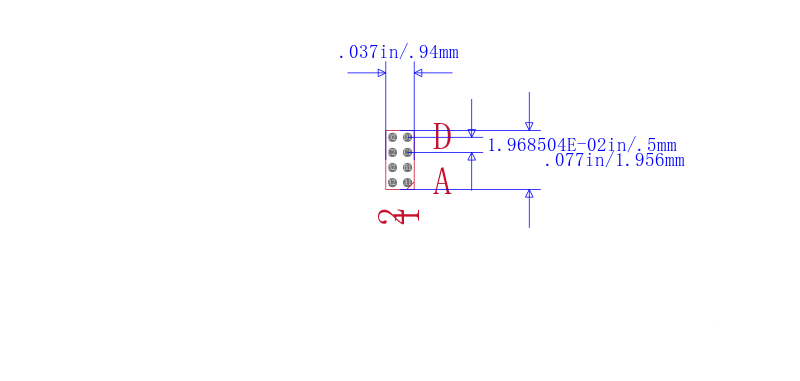

SN74LVC2G125YZPR

具有三态输出的双总线缓冲器门 DUAL BUS BUFFER GATE WITH 3 STATE OUTPUTS

The is a dual Bus Buffer Gate with 3-state outputs. The outputs are disabled when the associated output-enable OE input is high. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

.

±24mA Output drive at 3.3V

.

<0.8V at VCC = 3.3V typical VOLP Output ground bounce

.

>2V at VCC = 3.3V Typical VOHV Output VOH undershoot

.

Inputs from a Maximum of 5.5V down

.

10µA Maximum ICC low power consumption

.

Maximum tpd of 4.3ns at 3.3V

.

Ioff supports live insertion, partial power down mode and back drive protection

.

ESD protection exceeds JESD 22

.

Latch-up performance exceeds 100mA per JESD 78, Class II
