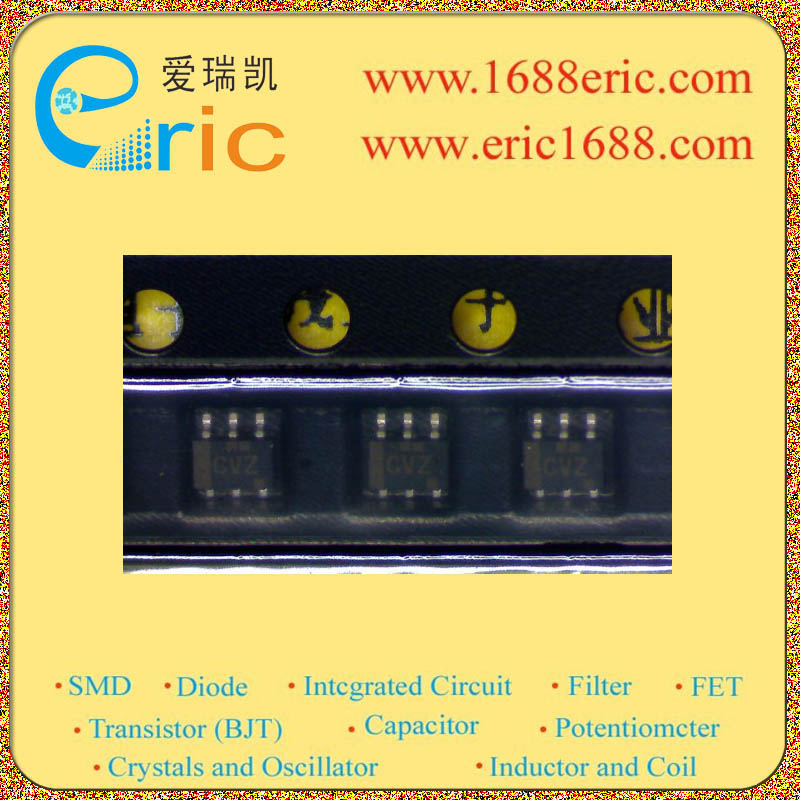

SN74LVC2G07DCKR

TEXAS INSTRUMENTS  SN74LVC2G07DCKR.  芯片, 缓冲器 非反相, SC-70-6, 整卷

逻辑类型Logic Type| 非反相并带开漏极 Non-Inverting with Open Drain \---|--- 电路数Number of Circuits| 2 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 1.65 V ~ 5.5 V 静态电流IqCurrent - Quiescent Max| —，32mA 输出高，低电平电流Current - Output High, Low| This dual buffer/driver is designed for 1.65-V to 5.5-V VCC operation. The output of the SN74LVC2G07 is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The Ioff circuitry disables the outputs,preventing damaging current backflow through the device when it is powered down 低逻辑电平Logic Level - Low| 这种双重缓冲/驱动器设计用于1.65-V到5.5 V的VCC操作。  SN74LVC2G07的输出开漏输出，可以连接到其他的开路漏极输出，实现有源低线或或有源高有线和功能。 IOFF电路关闭输出，防止损坏电流回流通过设备时，断电 高逻辑电平Logic Level - High| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| Description & Applications| 描述与应用|
