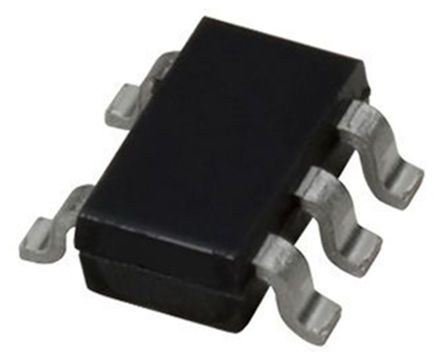

TEXAS INSTRUMENTS SN74LVC1G17DCKT 芯片, 施密特触发缓冲器, SC-70-5, 整卷
The is a single Schmitt-trigger Buffer designed for 1.65 to 5.5V VCC operation. This device contains one buffer and performs the Boolean function Y = A. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The device functions as an independent buffer, but because of Schmitt action, it will have different input threshold levels for a positive-going VT+ and negative-going signals. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
电源电压DC 1.65V ~ 5.50V
输出接口数 1
电路数 1
通道数 1
针脚数 5
位数 1
传送延迟时间 5.00 ns
逻辑门个数 1
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 5

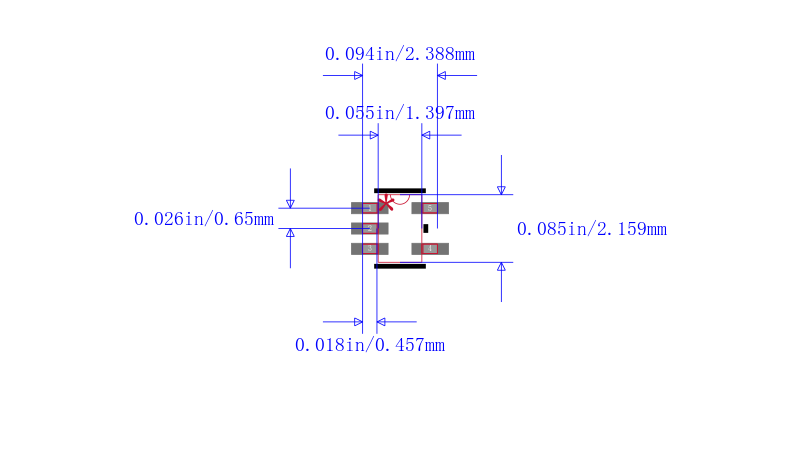

封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 音频, 无线, 便携式器材, 通信与网络, 成像, 电机驱动与控制, 消费电子产品, 信号处理, 视频和目视, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC1G17DCKT TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC1G17DBVR 德州仪器 | 完全替代 | SN74LVC1G17DCKT和SN74LVC1G17DBVR的区别 |
SN74LVC1G17DCKR 德州仪器 | 完全替代 | SN74LVC1G17DCKT和SN74LVC1G17DCKR的区别 |
SN74LVC1G17DBVT 德州仪器 | 完全替代 | SN74LVC1G17DCKT和SN74LVC1G17DBVT的区别 |
