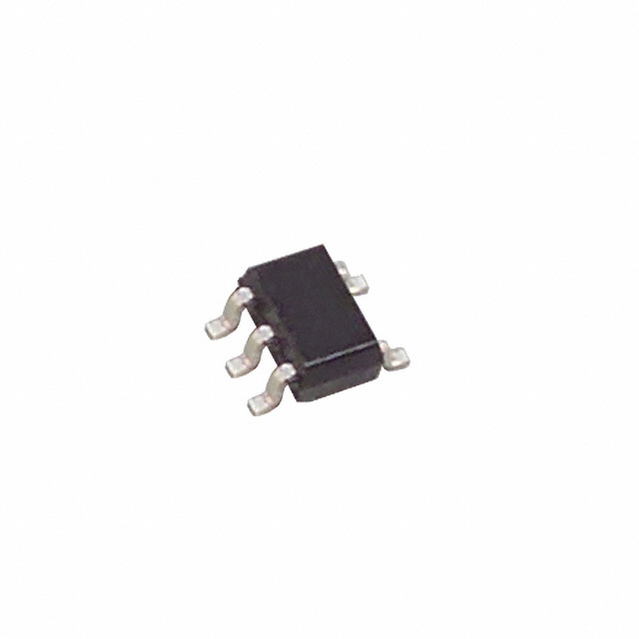

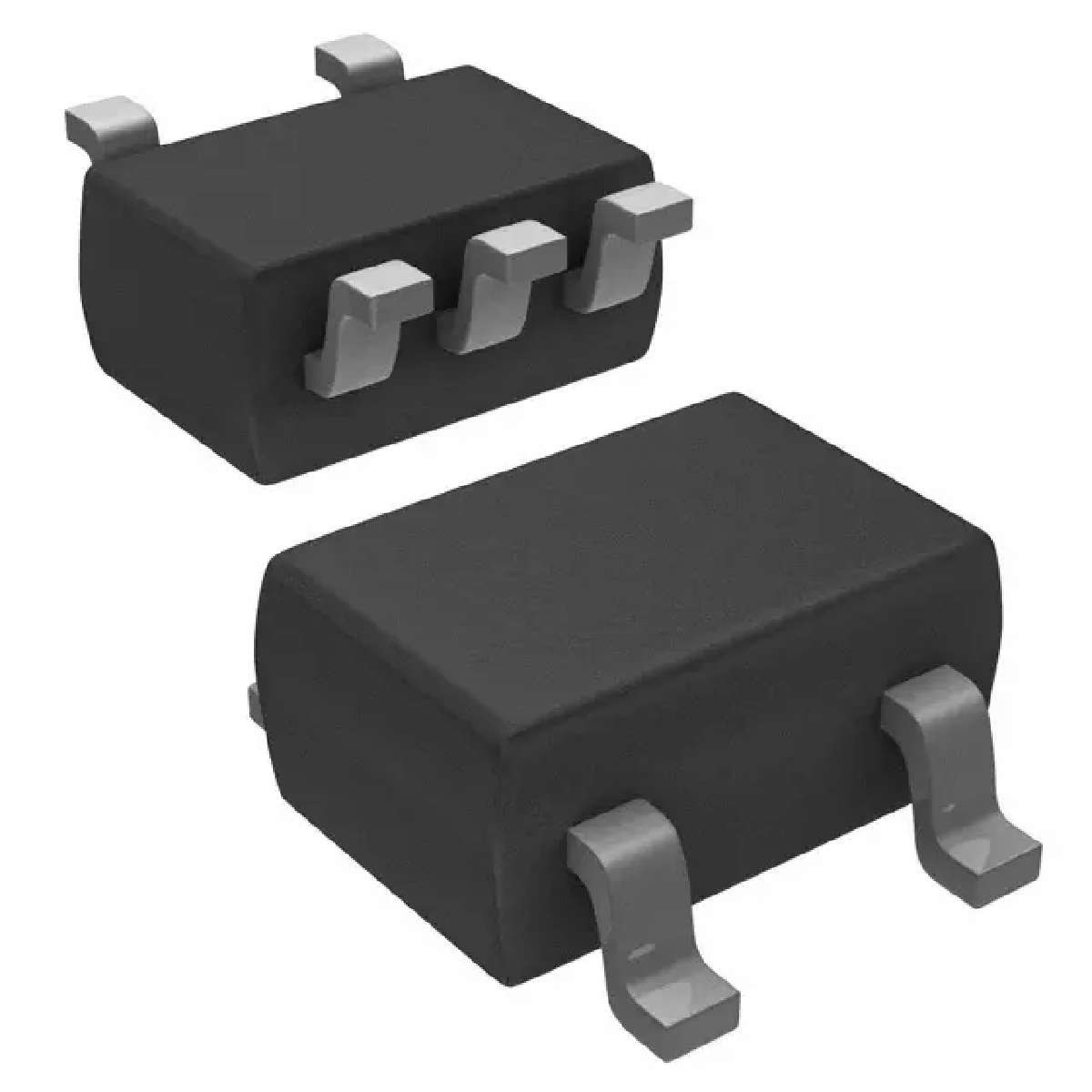

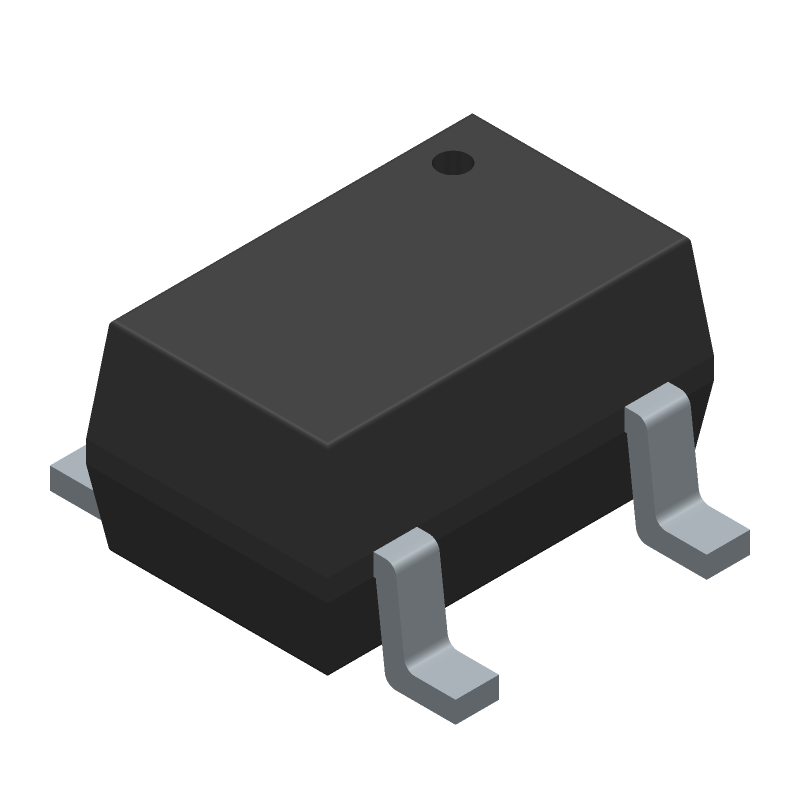

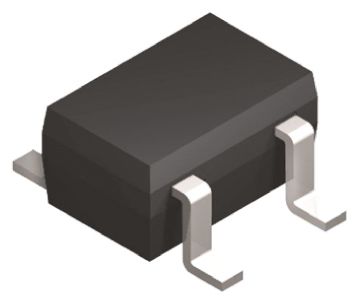

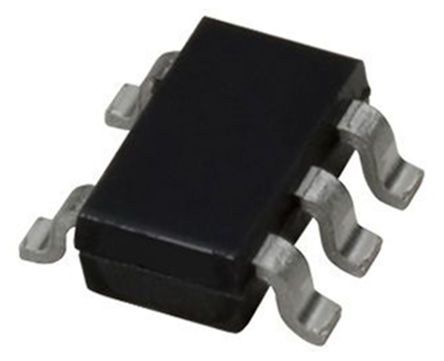

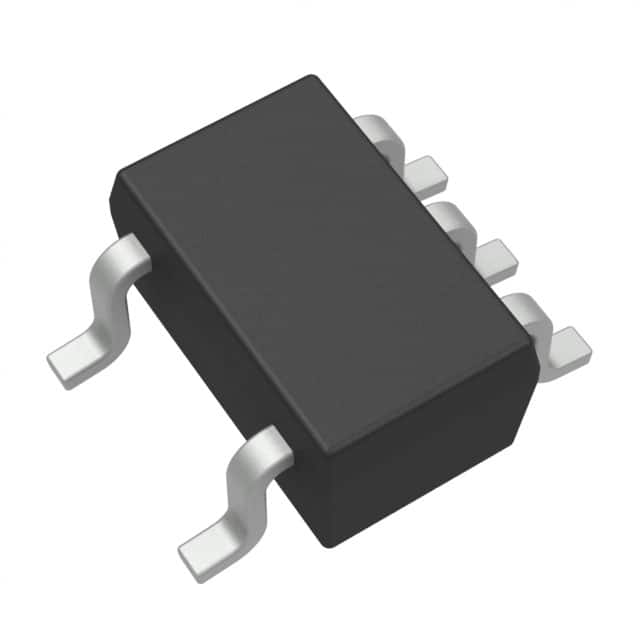

SN74LVC1G04DCKR

TEXAS INSTRUMENTS  SN74LVC1G04DCKR  非门, LVC系列, 1门, 5输入, 32 mA, 1.65V至5.5V, SC-70-5

逻辑类型Logic Type| 反相器 Inverter \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 1.65V~5.5V 静态电流IqCurrent - Quiescent Max| 10µA 输出高，低电平电流Current - Output High, Low| -32mA,32mA 低逻辑电平Logic Level - Low| 0.7 V ~ 0.8 V 高逻辑电平Logic Level - High| 1.7 V ~ 2 V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 3.7ns @ 5V，50pF Description & Applications| SINGLE INVERTER GATE ；• Available in the Texas Instruments NanoFree™ • Latch-Up Performance Exceeds 100 mA Per Package JESD 78, Class II • Supports 5-V VCC Operation • Inputs Accept Voltages to 5.5 V • Max tpd of 3.6 ns at 3.3 V • Low Power Consumption, 10-μA Max ICC • ±24-mA Output Drive at 3.3 V • Ioff Supports Partial-Power-Down Mode Operation • ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model A114-A – 1000-V Charged-Device Model C101 描述与应用| 单个逆变器门;•可在NanoFree™•闭锁性能超过100 mA每 包装JESD 78，II类 •支持5-V VCC操作 •接受输入电压为5.5 V •最大TPD为3.6 ns在3.3 V •低功耗，10μA最大ICC •±24 mA输出驱动在3.3 V •IOFF支持部分掉电模式操作 •ESD保护超过JESD22 - 2000-V人体模型（A114-A） - 1000-V带电器件模型（C101）
