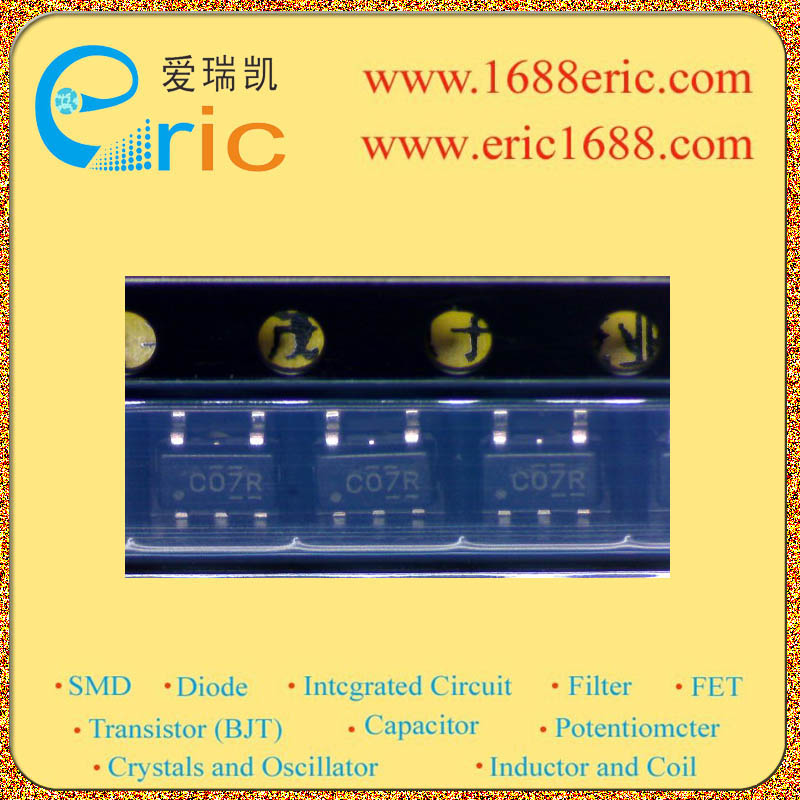

SN74LVC1G07DBVT

TEXAS INSTRUMENTS  SN74LVC1G07DBVT  单路缓冲器 / 驱动器, 非反相, 开漏输出, 1.65V至5.5V, SOT-23-5

逻辑类型Logic Type| 非反相并带开漏极 Non-Inverting with Open Drain \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 1.65 V ~ 5.5 V 静态电流IqCurrent - Quiescent Max| —，32mA 输出高，低电平电流Current - Output High, Low| SINGLE BUFFER/DRIVER WITH OPEN-DRAIN OUTPUT;This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation. The output of the SN74LVC1G07 device is open drain and can be connected to other open-drain outputs to implement "active-low wired-OR" or "active-high wired-AND" functions. 低逻辑电平Logic Level - Low| 具有漏极开路输出的单缓冲/驱动器;这种单缓冲/驱动器设计用于1.65-V到5.5 V的VCC操作。 SN74LVC1G07设备的输出是漏极开路，可以连接到其它的漏极开路输出来实现的低电平有效的有线或"或"高电平有效的有线和功能。 高逻辑电平Logic Level - High| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| Description & Applications| 描述与应用|
