TEXAS INSTRUMENTS SN74LV138ATPWT 芯片, 线性解码器/信号分离器, 3:8, TSSOP-16
Have multiple states to choose from in a logic circuit? Then look no further, this from Texas Instruments is all you need to select between states. This decoder has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 4.50V min
输出接口数 8
电路数 1

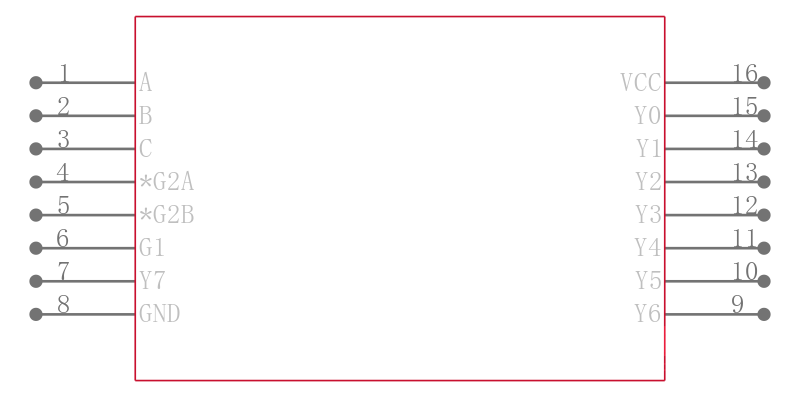

针脚数 16
位数 8
带宽 70.0 MHz
输入数 3
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV138ATPWT TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV138ATPWR 德州仪器 | 类似代替 | SN74LV138ATPWT和SN74LV138ATPWR的区别 |
SN74LV138ATPW 德州仪器 | 类似代替 | SN74LV138ATPWT和SN74LV138ATPW的区别 |
