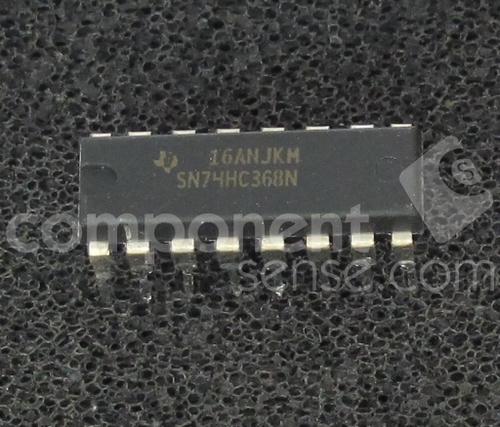

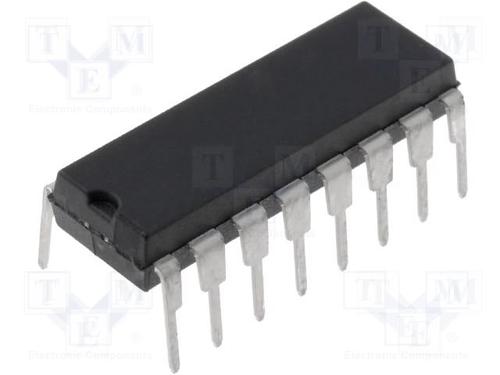

TEXAS INSTRUMENTS SN74HC368N.. 逻辑芯片, 缓冲器
These hex buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The HC368 devices are organized as dual 4-line and 2-line buffers/drivers with active-low output-enable 1OE\ and 2OE\\\\ inputs. When OE\ is low, the device passes inverted data from the A inputs to the Y outputs. When OE\ is high, the outputs are in the high-impedance state.
得捷:
IC BUFFER INVERT 6V 16DIP
立创商城:
SN74HC368N
德州仪器TI:
6-ch, 2-V to 6-V inverters with 3-state outputs
贸泽:
Buffers & Line Drivers Tri-State Hex
e络盟:
逻辑芯片, 缓冲器
艾睿:
Buffer/Line Driver 6-CH Inverting 3-ST CMOS 16-Pin PDIP Tube
安富利:
Buffer/Line Driver 6-CH Inverting 3-ST CMOS 16-Pin PDIP Tube
Chip1Stop:
Buffer/Line Driver 6-CH Inverting 3-ST CMOS 16-Pin PDIP Tube
TME:
IC: digital; 3-state,4bit, inverter; Channels:6; THT; DIP16
Verical:
Buffer/Line Driver 6-CH Inverting 3-ST CMOS 16-Pin PDIP Tube
Newark:
Buffer / Driver, 74HC368, 2 V to 6 V, DIP-16
Win Source:
IC INVERTER DUAL 8-INPUT 16DIP
电源电压DC 2.00V ~ 6.00V
输出接口数 6
电路数 2
通道数 6

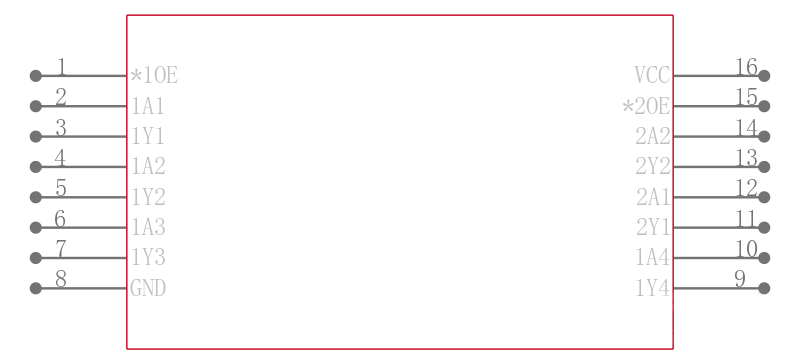

针脚数 16
位数 6
传送延迟时间 20.0 ns
电压波节 6.00 V, 5.00 V, 2.00 V
输出电流驱动 -1.00 mA
输入数 6
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Through Hole
引脚数 16

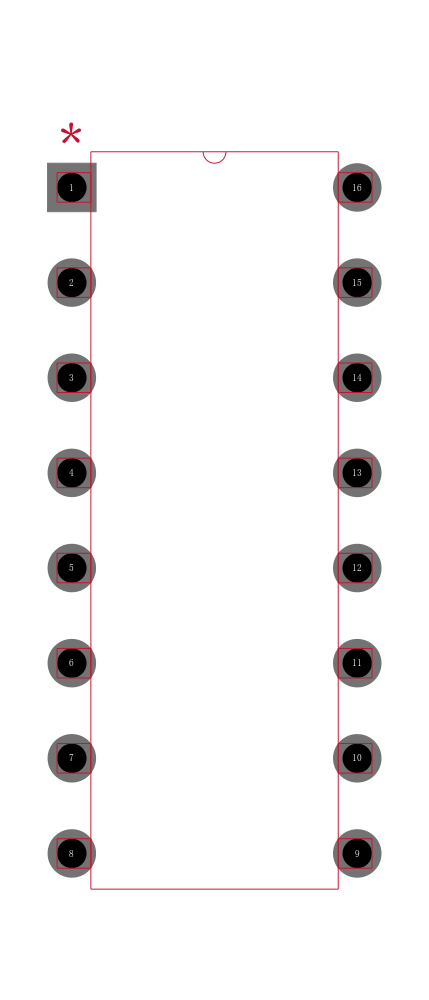

封装 PDIP-16
长度 19.3 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC368N TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC368NE4 德州仪器 | 完全替代 | SN74HC368N和SN74HC368NE4的区别 |
CD74HC368E 德州仪器 | 类似代替 | SN74HC368N和CD74HC368E的区别 |
SNJ54HC368J 德州仪器 | 类似代替 | SN74HC368N和SNJ54HC368J的区别 |
