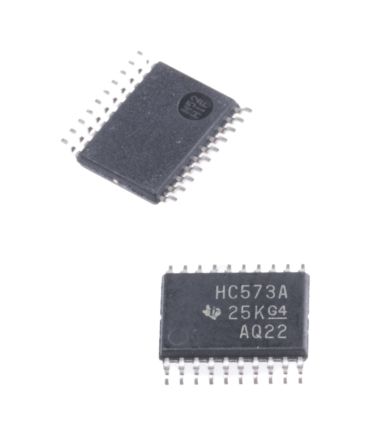

TEXAS INSTRUMENTS SN74HC573APWR 芯片, 八D型锁存器
74HC 系列触发器和闩锁,Texas Instruments
Texas Instruments 的 74HC 系列 CMOS 逻辑 IC 的一系列触发器和闩锁。 74HC 系列使用硅门 CMOS 技术,以实现类似于 LSTTL 系列的工作速度,但具有标准 CMOS 集成电路的低功耗。
高速 CMOS 逻辑
工作电压:2 至 6 V
兼容性:输入 CMOS、输出 CMOS
### 74HC 系列
得捷:
IC OCTAL TRANSP LATCH 20-TSSOP
立创商城:
SN74HC573APWR
德州仪器TI:
Octal Transparent D-Type Latches With 3-State Outputs
欧时:
### 74HC 系列触发器和闩锁,Texas InstrumentsTexas Instruments 的 74HC 系列 CMOS 逻辑 IC 的一系列触发器和闩锁。 74HC 系列使用硅门 CMOS 技术,以实现类似于 LSTTL 系列的工作速度,但具有标准 CMOS 集成电路的低功耗。### 74HC 系列
e络盟:
TEXAS INSTRUMENTS SN74HC573APWR 芯片, D型锁存器, 八路, SMD, 整卷
艾睿:
Say goodbye to real time information seeping through logic gates by using this d-type SN74HC573APWR low-level latch from Texas Instruments. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 8 channels per chip.
安富利:
Latch Transparent 3-ST 8-CH D-Type 20-Pin TSSOP T/R
Chip1Stop:
Latch Transparent 3-ST 8-CH D-Type 20-Pin TSSOP T/R
Verical:
Latch Transparent 3-ST 8-CH D-Type 20-Pin TSSOP T/R
Newark:
# TEXAS INSTRUMENTS SN74HC573APWR Latch, HC Family, 74HC573, D Type Transparent, Tri State, 43 ns, 7.8 mA, TSSOP
力源芯城:
八D透明锁存器三态输出
Win Source:
D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-TSSOP
DeviceMart:
IC OCTAL TRANSP LATCH 20-TSSOP
电源电压DC 2.00V ~ 6.00V
输出接口数 8
输出电流 7.8 mA
电路数 8
通道数 8
针脚数 20
位数 8
传送延迟时间 38.0 ns
极性 Non-Inverting
电压波节 6.00 V, 5.00 V, 2.00 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC573APWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC573APWT 德州仪器 | 完全替代 | SN74HC573APWR和SN74HC573APWT的区别 |
SN74HC573AQPWRG4Q1 德州仪器 | 类似代替 | SN74HC573APWR和SN74HC573AQPWRG4Q1的区别 |
SN74HC573APWRE4 德州仪器 | 类似代替 | SN74HC573APWR和SN74HC573APWRE4的区别 |
