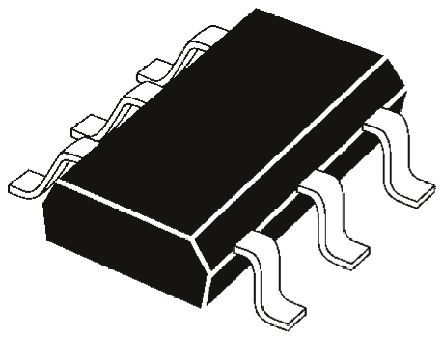

TEXAS INSTRUMENTS SN74AVCH1T45DCKT 芯片, 总线收发器, SC706
74AVCH 系列,Texas Instruments
得捷:
IC TRANSLTR BIDIRECTIONAL SC70-6
立创商城:
SN74AVCH1T45DCKT
德州仪器TI:
Single-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs
欧时:
Texas Instruments SN74AVCH1T45DCKT 1位 非反相 总线收发器, 6引脚 SC-70封装
贸泽:
转换 - 电压电平 SNGLB Dual Supply Bus Transceiver
e络盟:
总线收发器, AVC系列, 1输入, 12mA, 2.8ns, 380 Mbps, 1.2V至3.6V, SC-70-6
艾睿:
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the SN74AVCH1T45DCKT level translator from Texas Instruments is for you. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
安富利:
Voltage Level Translator 6-Pin SC-70 T/R
Verical:
Voltage Level Translator 1-CH Bidirectional 6-Pin SC-70 T/R
Newark:
# TEXAS INSTRUMENTS SN74AVCH1T45DCKT Bus Transceiver, AVC Family, 1 Input, 12 mA, 2.8 ns, 380 Mbps, 1.2 V to 3.6 V, SC-70-6
DeviceMart:
IC BUS TRANSCVR TRI-ST SC706
电源电压DC 1.20V ~ 3.60V
输出接口数 2
输出电流 12 mA
电路数 1
通道数 1
针脚数 6
位数 1
传送延迟时间 2.80 ns
电压波节 3.30 V
数据速率 380 Mbps
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 1
电源电压 1.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
长度 2.15 mm
宽度 1.4 mm
高度 1 mm
封装 SC-70-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AVCH1T45DCKT TI 德州仪器 | 当前型号 | 当前型号 |
SN74AVCH1T45DBVR 德州仪器 | 完全替代 | SN74AVCH1T45DCKT和SN74AVCH1T45DBVR的区别 |
SN74AVCH1T45DCKR 德州仪器 | 完全替代 | SN74AVCH1T45DCKT和SN74AVCH1T45DCKR的区别 |
SN74AVCH1T45YZPR 德州仪器 | 完全替代 | SN74AVCH1T45DCKT和SN74AVCH1T45YZPR的区别 |
