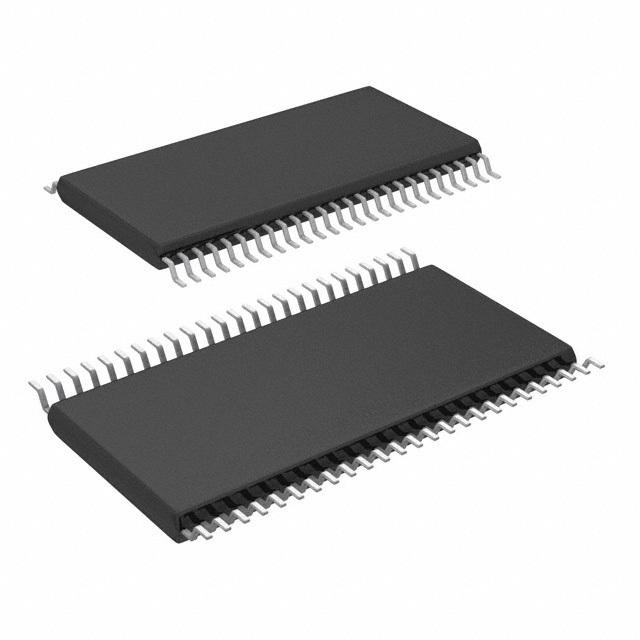

TEXAS INSTRUMENTS SN74AVCB164245GR 逻辑芯片, 收发器, 16位, 非反相, TSSOP-48
Are you looking for a device that can regulate the input voltage into your circuit? Texas Instruments" level translator is the perfect solution for you. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.4 V, while its maximum is 3.6 V.
电源电压DC 1.40V ~ 3.60V
输出接口数 16
电路数 2
通道数 16
针脚数 48
位数 16
传送延迟时间 5.00 ns
电压波节 3.30 V, 2.50 V, 1.80 V, 1.50 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 8
电源电压 1.4V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.4 V
安装方式 Surface Mount
引脚数 48
封装 TSSOP-48
封装 TSSOP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AVCB164245GR TI 德州仪器 | 当前型号 | 当前型号 |
74AVCB164245GRE4 德州仪器 | 完全替代 | SN74AVCB164245GR和74AVCB164245GRE4的区别 |
74AVCB164245GRG4 德州仪器 | 完全替代 | SN74AVCB164245GR和74AVCB164245GRG4的区别 |
SN74AVCA164245GR 德州仪器 | 类似代替 | SN74AVCB164245GR和SN74AVCA164245GR的区别 |
