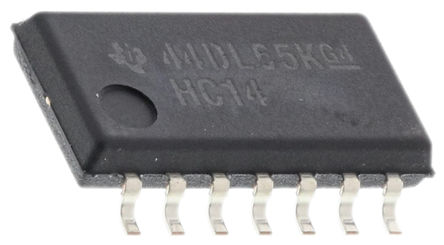

TEXAS INSTRUMENTS SN74HC14NSR 芯片, 六路非门, 施密特触发, SOP14, 整卷
74HC 系列反相器和缓冲器,Texas Instruments
Texas Instruments 的 74HC 系列 CMOS Logic IC 的一系列反相器和缓冲器。 74HC 系列使用硅门 CMOS 技术,实现与 LSTTL 系列类似的工作速度,但标准 CMOS 集成电路功耗降低。
高速 CMOS 逻辑
工作电压:2 至 6 V
兼容性:输入 CMOS、输出 CMOS
得捷:
IC INVERT SCHMITT 6CH 1-IN 14SOP
立创商城:
SN74HC14NSR
德州仪器TI:
6-ch, 2-V to 6-V inverters with Schmitt-Trigger inputs
欧时:
Texas Instruments SN74HC14NSR 六 施密特 反相器, LSTTL输出, 5.2mA, 2 → 6 V电源, 14引脚 SOIC封装
贸泽:
Inverters Hex Schmitt-Trigger
e络盟:
非门, 施密特触发器, 74HC14, 1输入, 5.2 mA, 2 V至6 V, SOP-14
艾睿:
Thanks to Texas Instruments and their SN74HC14NSR inverting Schmitt trigger, most noisy analog signals can be converted into a clean digital signal. With a Schmitt trigger output, this is power management at its best. This inverting Schmitt trigger has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
安富利:
Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOP T/R
Chip1Stop:
Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOP T/R
Verical:
Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOP T/R
Newark:
Inverter, Schmitt Trigger, 74HC14, 1 Input, 5.2 mA, 2 V to 6 V, SOP-14
力源芯城:
六施密特触发反相器
DeviceMart:
IC HEX INVERTER SHMT-TRGR 14-SOP
Win Source:
IC HEX INVERTER SHMT-TRGR 14SO
电源电压DC 2.00V ~ 6.00V
输出电流 5.2 mA
电路数 6
针脚数 14
位数 6
传送延迟时间 26.0 ns
电压波节 6.00 V, 5.00 V, 2.00 V
逻辑门个数 6
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOP-14
长度 10.5 mm
宽度 5.6 mm
高度 1.85 mm
封装 SOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC14NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC14N 德州仪器 | 完全替代 | SN74HC14NSR和SN74HC14N的区别 |
SN74HC14NSRE4 德州仪器 | 类似代替 | SN74HC14NSR和SN74HC14NSRE4的区别 |
SN74HC14NS 德州仪器 | 类似代替 | SN74HC14NSR和SN74HC14NS的区别 |
