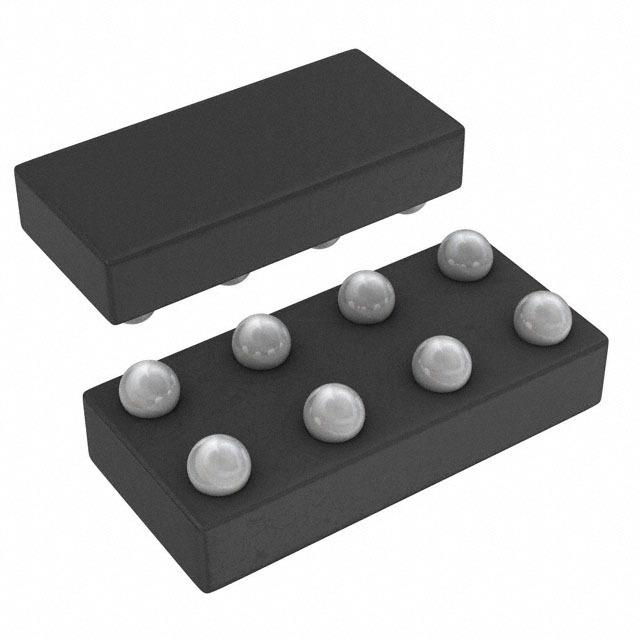

TEXAS INSTRUMENTS SN74AVC2T45YZPR 收发器, 3态, 非反相, 1.2 V至3.6 V, BGA-8
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the level translator from Texas Instruments is for you. This level shifter has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
电源电压DC 1.20V ~ 3.60V
电路数 1
通道数 2
针脚数 8
位数 2
传送延迟时间 2.40 ns
数据速率 500 Mbps
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 1
电源电压 1.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 8

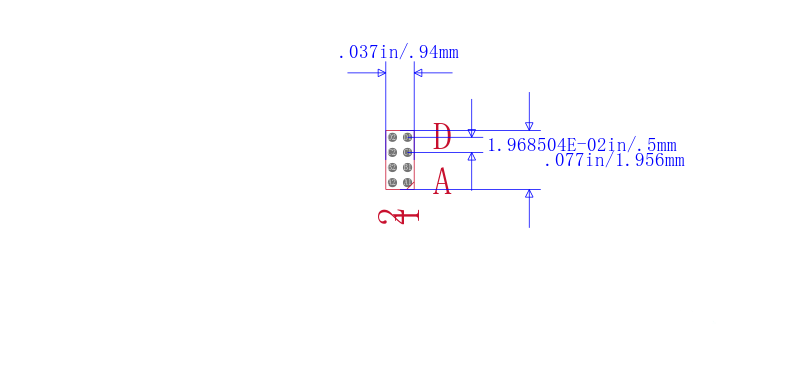

封装 BGA-8
高度 0.31 mm
封装 BGA-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AVC2T45YZPR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AVC2T45DCTR 德州仪器 | 完全替代 | SN74AVC2T45YZPR和SN74AVC2T45DCTR的区别 |
SN74AVC2T45DCUR 德州仪器 | 完全替代 | SN74AVC2T45YZPR和SN74AVC2T45DCUR的区别 |
SN74AVC2T45DCUT 德州仪器 | 完全替代 | SN74AVC2T45YZPR和SN74AVC2T45DCUT的区别 |
