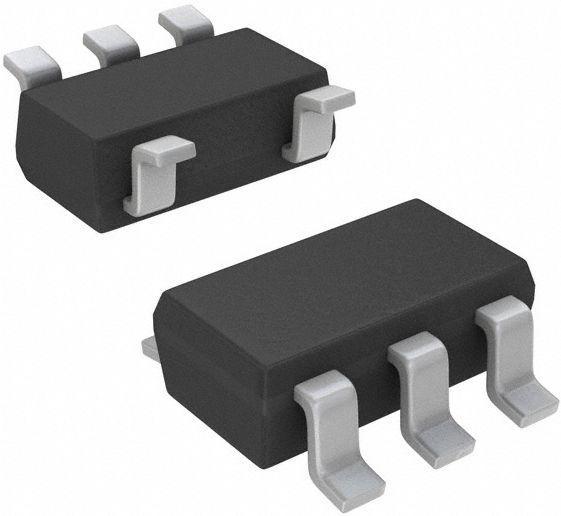

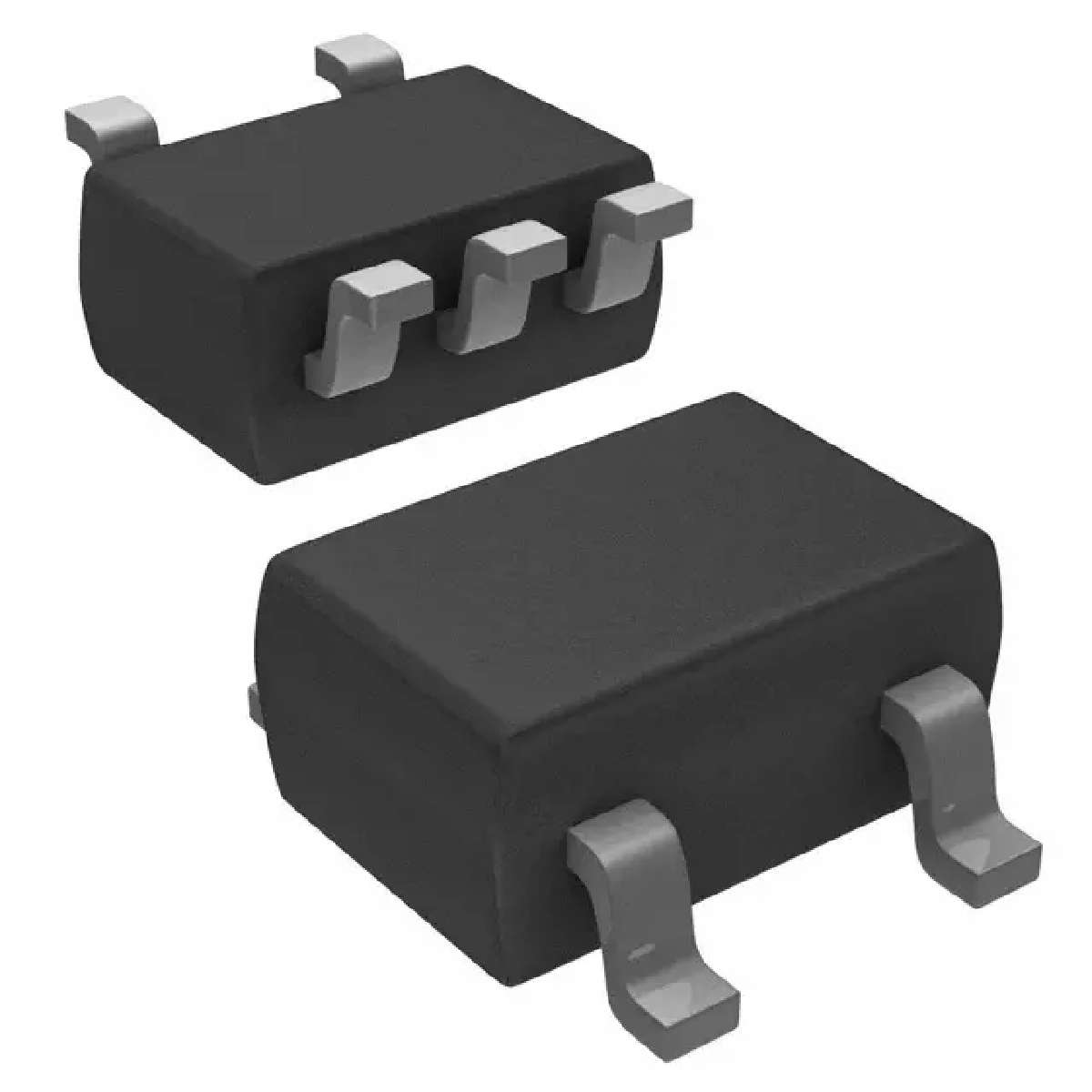

SN74AHCT1G02DCKT

TEXAS INSTRUMENTS  SN74AHCT1G02DCKT  或非门, ACHT系列, 1门, 2输入, 8 mA, 4.5V至5.5V, SC-70-5

description/ordering information

This device contains a single 2-input NOR gate that performs the Boolean function Y = A • B or Y = A + B in positive logic.

• Operating Range of 4.5 V to 5.5 V

• Max tpd of 6.5 ns at 5 V

• Low Power Consumption, 10-µA Max ICC

• ±8-mA Output Drive at 5 V

• Inputs Are TTL-Voltage Compatible

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A

   – 200-V Machine Model A115-A

   – 1000-V Charged-Device Model C101
