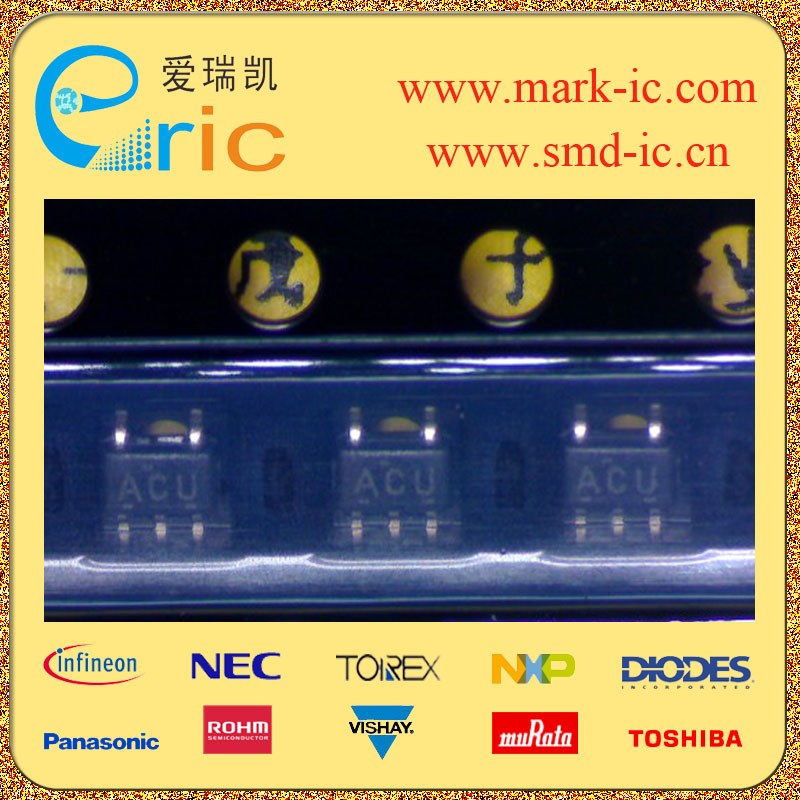

SN74AHC1G04DCKR

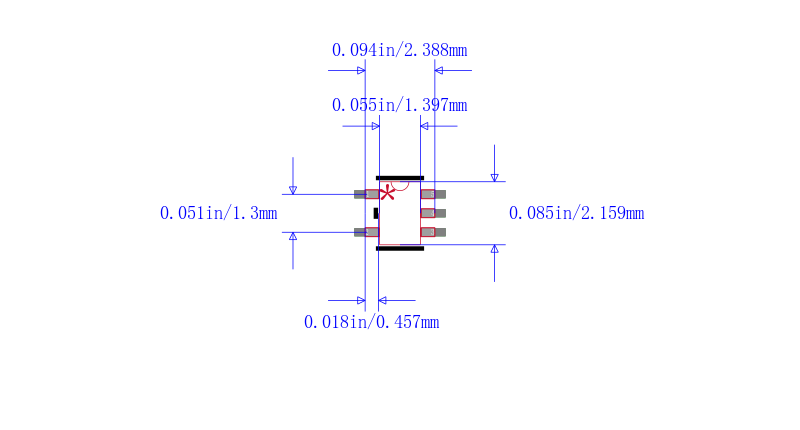

TEXAS INSTRUMENTS  SN74AHC1G04DCKR  非门, ACH系列, 1门, 1输入, 8 mA, 2V至5.5V, SC-70-5

逻辑类型Logic Type| 反相器 Inverter \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 1 电源电压VccVoltage - Supply| 2v~5.5v 静态电流IqCurrent - Quiescent Max| 10uA 输出高，低电平电流Current - Output High, Low| -8mA,8mA 低逻辑电平Logic Level - Low| 0.5v~1.65v 高逻辑电平Logic Level - High| 1.5v~3.85v 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 5.3ns @ 5V，50pF Description & Applications| SINGLE inverter GATE ;Operating Range of 2 V to 5.5 V Max tpd of 6.5 ns at 5 V
Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V
Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time Latch-Up Performance Exceeds 250 mA Per JESD 17 描述与应用| 单个逆变器门;2 V至5.5 V的工作电压范围吗？ 最大为6.5 ns吨，在5 V？低功耗，10μA最大ICC ±8 mA输出驱动在5 V？ 施密特触发器动作在所有输入使？ 电路容错输入较慢的上升和下降时间 闭锁性能超过250 mA每 JESD17
